Check Valves

AS-Schneider Check Valves (Non-Return Valves) are designed for a max. allowable (Working) Pressure (PS) of 10,000 psi (689 bar). The Check Valve allows flow in one direction only, closing when flow reverses. Should you still not find your option please contact the factory.

Example for a typical product acc. to the below mentioned Ordering Information:

Part No.: CVFFSK-N4N4

CV Check Valve
F Inlet: Female
F Outlet: Female
S Materal: 1.4401 / 1.4404 / 316 / 316L
K Seal Ring: FKM- Fluorocarbon Rubber
-
N4 Inlet: 1/2 NPT
N4 Outlet: 1/2 NPT
Check Valves CV Type

Features

  • Soft Seated – O-Rings used are RGD (Rapid Gas Decompression) resistant
  • Cracking Pressure: < 11 psi (0.75 bar)
  • Re-Seal Pressure: < 20 psi (1.38 bar)
  • Temperature Rating: -50°C up to +200°C (-58°F up to +392°F), depending on seal materials used
  • 100% Pressure Tested – hydrostatically at 1.5 times the max. allowable (Working) Pressure (PS)
  • Cv-Value: 0.3

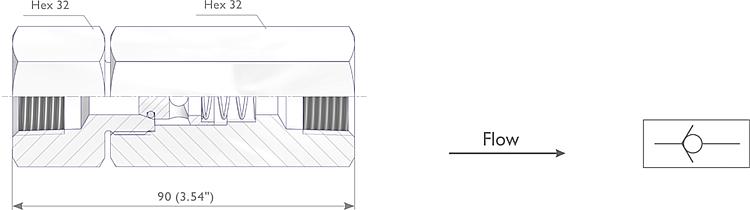

Check Valves Drawing (arrangement)
Ordering Information
BI
Check Valves Drawing (arrangement)
Further InformationAS-Schneider Check Valves (Non-Return Valves) are designed for a max. allowable (Working) Pressure (PS) of 10,000 psi (689 bar). The Check Valve allows flow in one direction only, closing when flow reverses. Should you still not find your option please contact the factory.
