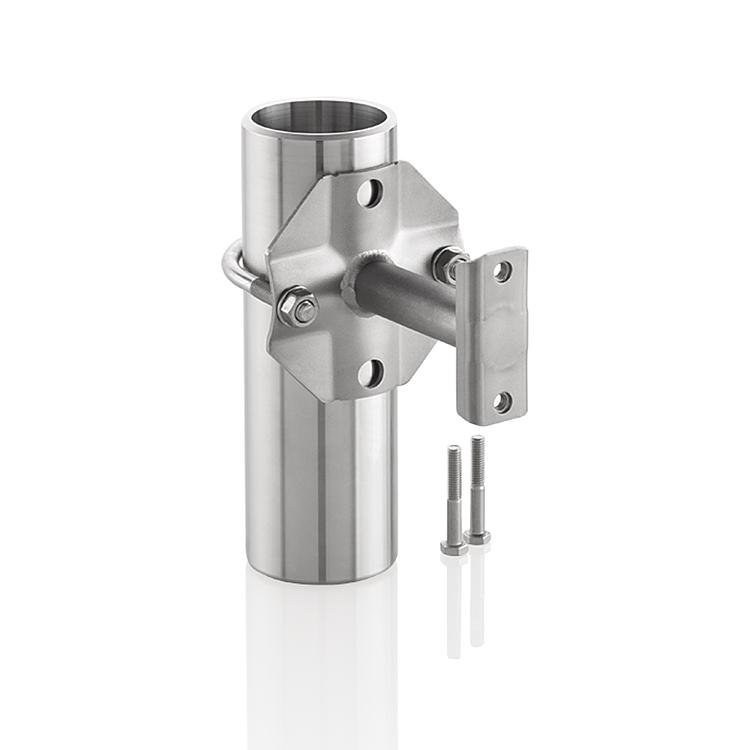

Mounting Bracket Kit

AKM-R Type

The Bracket fits to AS-Schneider Manifolds with 1 1/4" Flat Body - Type P and R (see Catalogue AS-2601 - E Series Valves and Manifolds). The bracket is designed for panel, wall and 2" pipe mounting and gives full clearance for ease of handle operation.

The Mounting Bracket contains:



  • 1 Mounting Bracket
  • 1 'U' Bolt
  • 2 Washers – 8,4
  • 2 Hexagon Nuts M8
  • 2 Hex Cap Screws M6x40
Example for a typical product acc. to the below mentioned Ordering Information:

Part No.: AKM-RPS

AKM Mounting Bracket Kit
-
R Suitable for: Valves and Manifolds with 1 1/4" Flat Body
(Type P and R)
P Mounting Method: 2" Pipe Mounting
S Material: Stainless Steel, 300 Series
Mounting Bracket Kits for Vertical Impulse Piping Installation

AKM-R Type

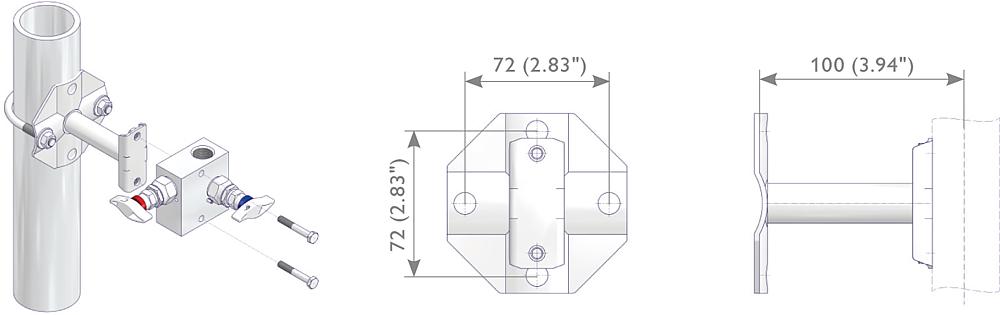

Mounting Bracket Kit Drawing (arrangement)
Ordering Information
BI
Mounting Bracket Kit Drawing (dimension)
Further InformationThe Bracket fits to AS-Schneider Manifolds with 1 1/4" Flat Body - Type P and R (see Catalogue AS-2601 - E Series Valves and Manifolds). The Bracket is designed for panel, wall and 2" pipe mounting and gives full clearance for ease of handle operation.
