Mounting Bracket Kit

AKM-T Type

The Bracket fits to AS-Schneider Integral Manifolds – Traditional Style. The bracket is designed for 2" pipe mounting and gives full clearance for ease of handle operation.

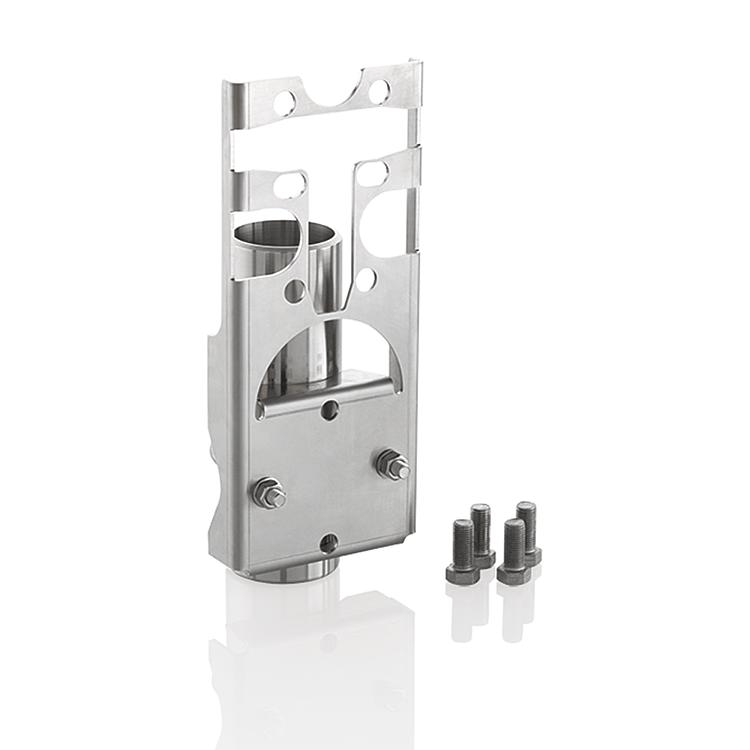

The Mounting Bracket contains:



  • 1 Mounting Bracket
  • 1 'U' Bolt
  • 2 Washers – 8.4
  • 2 Hexagon Nuts M8
  • 4 Hex Cap Screws 7/16-20UNF x 1"
Example for a typical product acc. to the below mentioned Ordering Information:

Part No.: AKM-TPS

AKM Mounting Bracket Kit
-
T Suitable for: Integral Manifolds – Traditional Style
P Mounting Method: 2" Pipe Mounting
S Material: Stainless Steel, 300 Series
Mounting Bracket Kits for Horitzontal Impulse Piping Installation

AKM-T Type

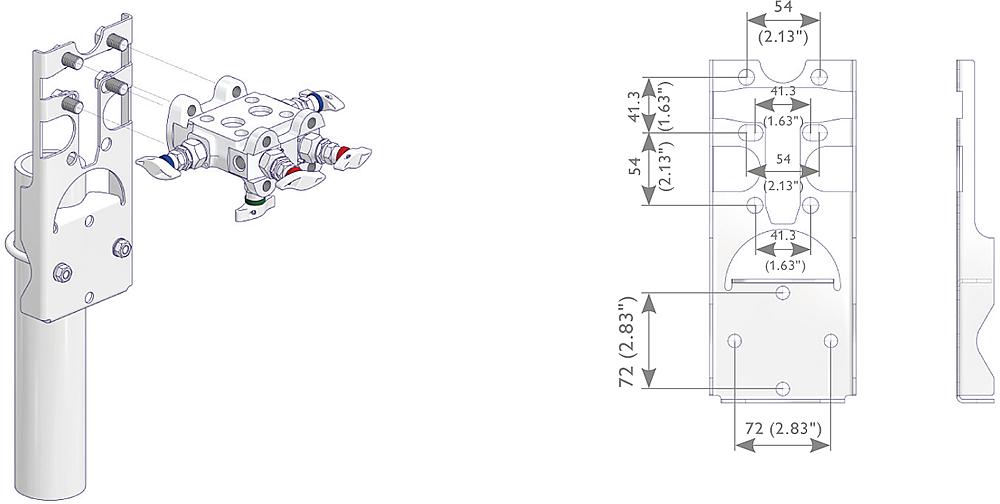

Mounting Bracket Kit Drawing (arrangement) 1
Ordering Information
BI
Mounting Bracket Kit Drawing (arrangement) 2
Further InformationThe Bracket fits to AS-Schneider Integral Manifolds – Traditional Style. The Bracket is designed for 2" pipe mounting and gives full clearance for ease of handle operation.
