Swivel Gauge Adapters Standard 1
  • Swivel Gauge Adapters Standard 1
  • Swivel Gauge Adapters Standard 2
  • Swivel Gauge Adapters Standard 3
  • Swivel Gauge Adapters Standard 4
  • Swivel Gauge Adapters Standard 5
  • Swivel Gauge Adapters Standard 6

Swivel Gauge Adapters

GS Type and GD Type

The Swivel Gauge Adapters enable the easy positioning of the pressure instrument in any direction through 360°. The dimensions shown apply only to the illustrated components – if you need the dimensions for your individual type please contact the factory.

Example for a typical product acc. to the below mentioned Ordering Information:

Part No.: GS-MFSP-N4N4

GS Swivel Gauge Adapter
- Screwed Design (10.000 psi / 689 bar)
-
M Inlet: Male
F Outlet: Female
S Material: 1.4401 / 1.4404 / 316 / 316L
P Seal Ring: PTFE
-
N4 Inlet (Thread): 1/2 NPT
N4 Outlet (Thread): 1/2 NPT
Webshop
Swivel Gauge Adapters
GS Type - For NPT Threads only GD Type
Swivel Gauge Adapters Drawing (arrangement) 1

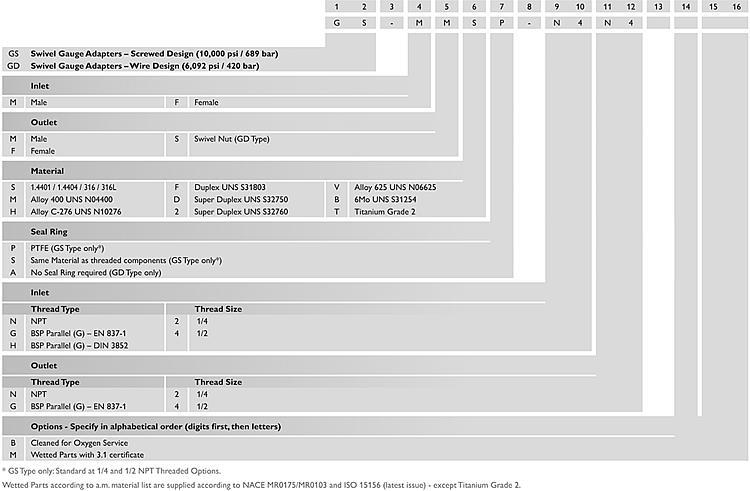

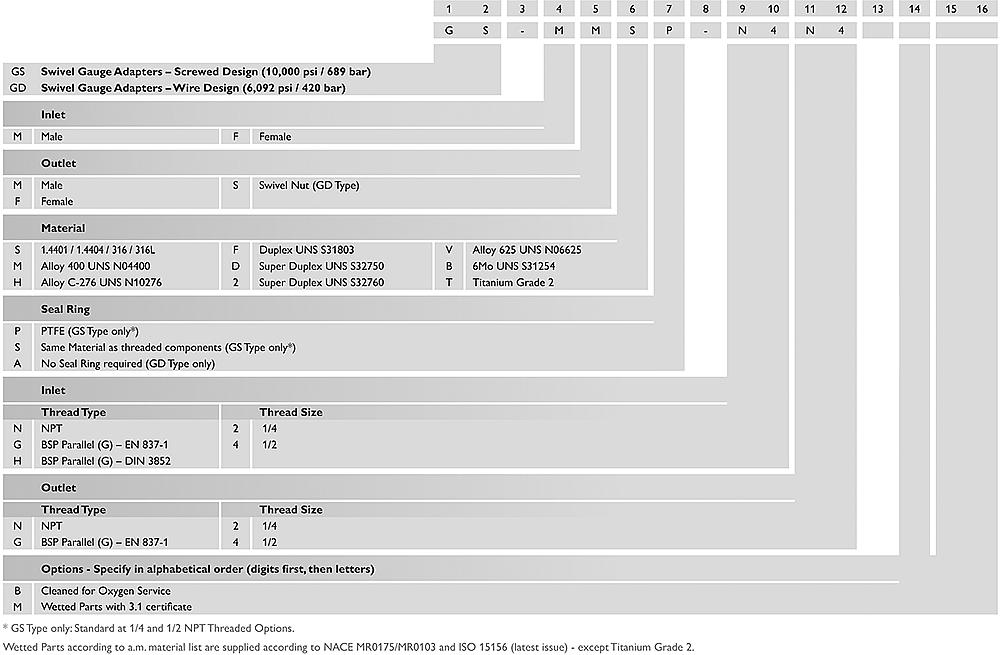

Ordering Information
BI
Swivel Gauge Adapters Drawing (arrangement) 2
Further InformationThe Swivel Gauge Adapters enable the easy positioning of the pressure instrument in any direction through 360°. The dimensions shown apply only to the illustrated components – if you need the dimensions for your individual type please contact the factory.
