Swivel Gauge Adapters

GW Type and GE Type

The Swivel Gauge Adapters enable the easy positioning of the pressure instrument in any direction through 360°. The dimensions shown apply only to the illustrated components – if you need the dimensions for your individual type please contact the factory.

Example for a typical product acc. to the below mentioned Ordering Information:

Bestell-Nr.: GW-MSSA-N4G4

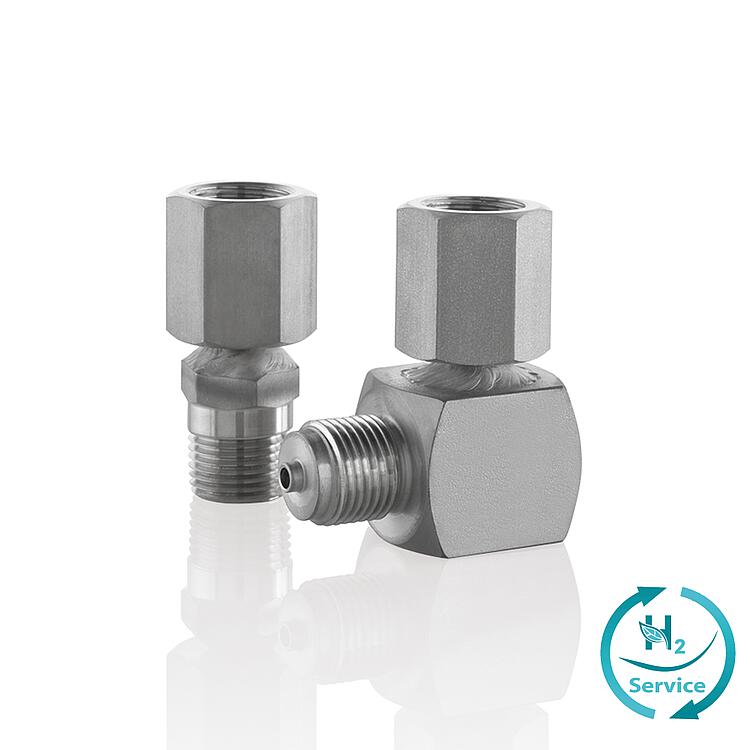

GW Swivel Gauge Adapter
- Welded Nipple Design
-
M Inlet: Male
S Outlet: Swivel Nut
S Material: 1.4401 / 1.4404 / 316 / 316L
A Seal Ring: -
-
N4 Inlet Thread Type: 1/2 NPT
G4 Outlet Thread Type: G 1/2
Webshop
Swivel Gauge Adapters
GW Type GE Type

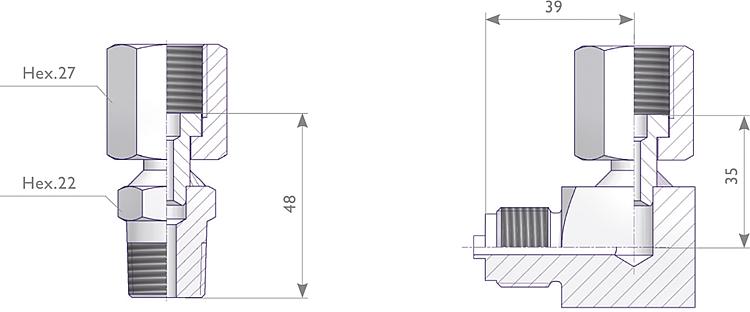

Swivel Gauge Adapters Drawing (arrangement) 1
Ordering Code
BI
Type Inlet Outlet Material Part Number
Components Seal Ring
Type GW 1/2 NPT Male G 1/2 Swivel Nut 1.4404 * / 1.4571 - GW-MSSA-N4G4
Type GW M 20 x 1.5 Swivel Nut 1.4404 * / 1.4571 - GW-MSSA-N4M4
Type GE G 1/2 Male EN 837-1 G 1/2 Swivel Nut 1.4404 * / 1.4571 - GE-MSSA-G4G4


* 316 / 316 L / 1.4401 / 1.4404

Further InformationThe Swivel Gauge Adapters enable the easy positioning of the pressure instrument in any direction through 360°. The dimensions shown apply only to the illustrated components – if you need the dimensions for your individual type please contact the factory.
