Description
Vent Valves Standard
  • Vent Valves Standard
  • Vent Valves Standard 1
  • Vent Valves Standard 2

Vent Valves

VS or VT Type

The below mentioned Vent Valves are available with Bleed Screw VS Type or T Handle VT Type.

Example for a typical product acc. to the below mentioned Ordering Information:

Part No.: VSMS-N4

VS Vent Valve with Bleed Screw
M Connection: Male
S Material: 1.4401 / 1.4404 / 316 / 316L
-
N4 Threaded Connection: 1/2 NPT
Vent Valves

VS Type                                                       VT Type

Vent Valves Drawing (arrangement)

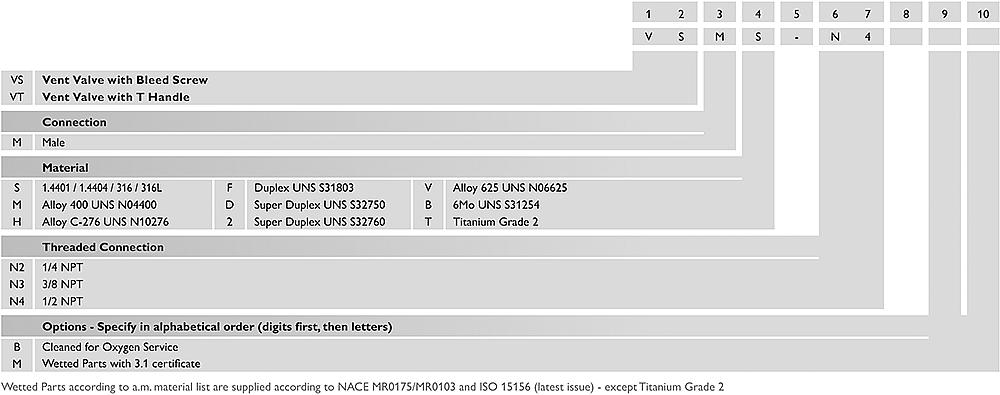

Ordering Information
BI
Vent Valves Drawing (arrangement)
Further InformationThe mentioned Vent Valves are available with Bleed Screw Type VS or T Handle Type VT.
