Block & Bleed Manifolds

S Type

AS-Schneider Block & Bleed Manifolds are designed for mounting to Pressure Gauges, Pressure Transmitters and Pressure Switches.
The standard vent connection is 1/4 NPT female. Pipe plugs are not installed as standard.
A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.

Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:

General InformationExample for a typical product acc. to the below mentioned Ordering Information:

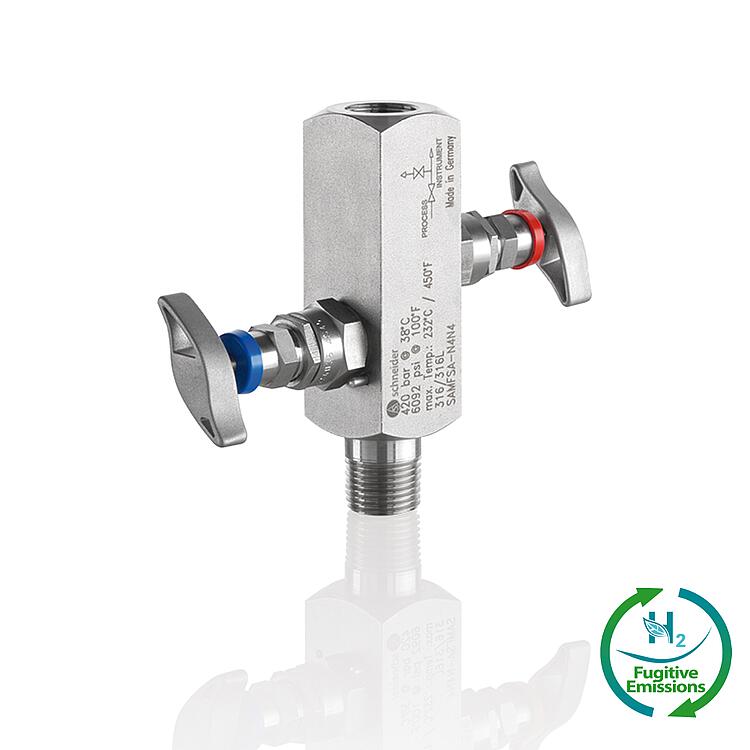

Part No.: SAMFSA-N4N4

S Block & Bleed Manifold
A Vent Connection: 1/4 NPT Female
M Inlet: Male
F Outlet: Female
S Material: 1.4401 / 1.4404 / 316 / 316L
A Bonnet: PTFE
-
N4 Inlet Thread Size: 1/2 NPT
N4 Outlet Thread Size: 1/2 NPT
Webshop
Block & Bleed - Manifolds - Female Threaded Instrument Connection

SAFF Type SAMF Type

Block & Bleed Manifolds Drawing (arrangement)
The dimensions shown in this catalogue apply to standard types. If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.
Ordering Information
BI
Block & Bleed Manifolds Drawing (arrangement)
MS
Further InformationAS-Schneider Block & Bleed Manifolds are designed for mounting to pressure instruments (transmitters, gauges and switches). The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider Block & Bleed Manifolds, as standard, are rated to 420 bar (6,092 psi), but can be rated at 689 bar (10,000 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156), degreased and lubricated for oxygen service as well as manifolds for fugitive emission applications.
