Traditional Style - Flanged x Flanged
AS-Schneider 2 Valve Integral Manifolds - Traditional Style are designed for direct mounting to Rosemount 2051/3051 CoplanarTM Pressure Transmitters. The standard vent connection is 1/4 NPT female. Pipe plugs are not installed as standard. Accessory Kits can be supplied for oval flange to manifold mounting.A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.
Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:General InformationExample for a typical product acc. to the below mentioned Ordering Information:

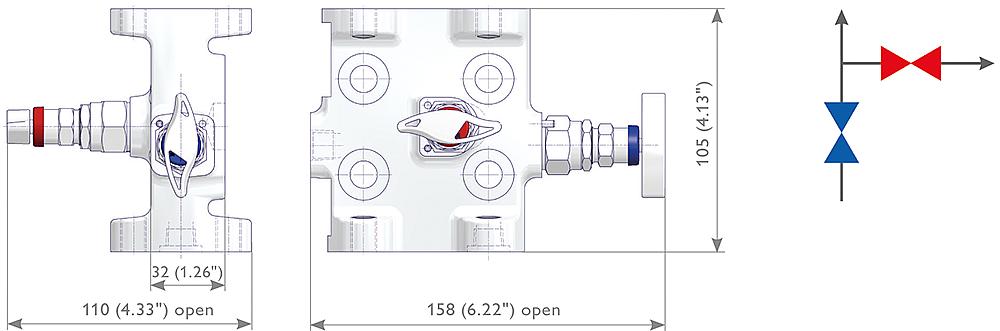

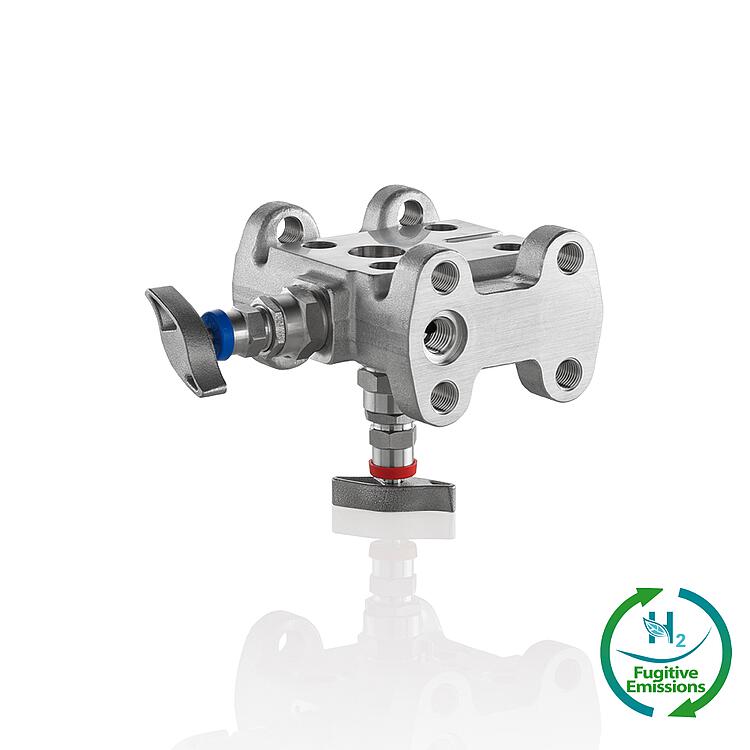

Part No.: H2TBSA-T3TF
|H||Traditional Style Integral Manifold|
|2||Quantity Bonnets: 2|
|T||Manifold Specifics: Integral Manifold – Traditional Style|
|B||Inlet: Flanged – For Traditional Style Integral Manifolds only|
|S||Material: 1.4401 / 1.4404 / 316 / 316L|
Inlet: Flange Interface EN 61518 with 1/4 NPT Female
|TF||Outlet - Transmitter Interface:
Rosemount 2051/3051 CoplanarTM Pressure Transmitter
AS-Schneider 2 Valve Integral Manifolds - Traditional Style are designed for direct mounting to Rosemount 2051/3051 CoplanarTM Pressure Transmitters. The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider 2 Valve Manifolds, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156), degreased and lubricated for oxygen service as well as manifolds for fugitive emission applications.
