2 Valve Manifolds

W2RA Type

CoplanarTM Style - Female x Flanged

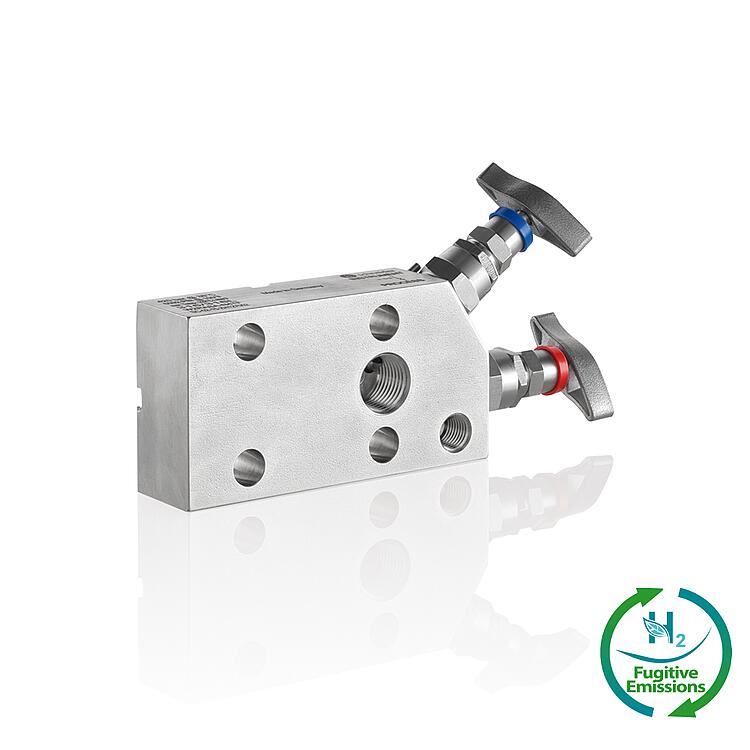

AS-Schneider 2 Valve Integral Manifolds - CoplanarTM Style are designed for direct mounting to Rosemount 2051/3051 CoplanarTM Pressure Transmitters. The standard vent connection is 1/4 NPT female. Pipe plugs are not installed as standard.

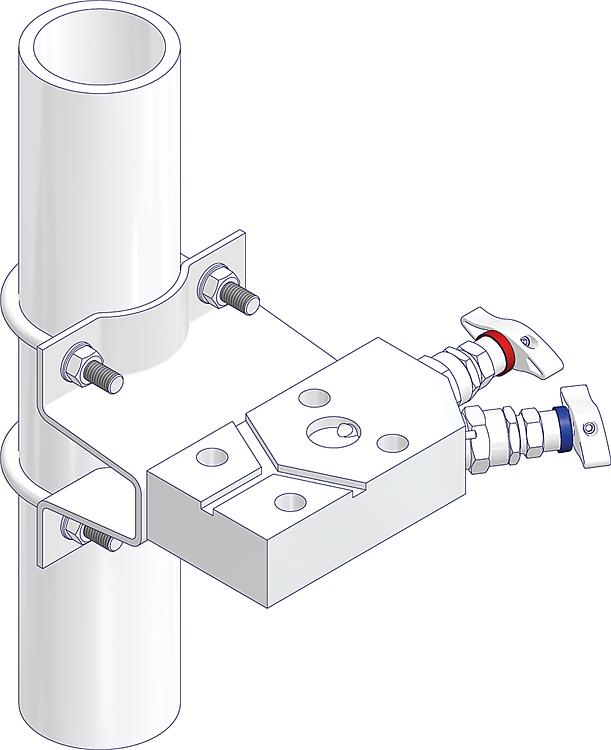

A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.

Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:

General InformationExample for a typical product acc. to the below mentioned Ordering Information:

Part No.: W2RASA-N4TF

W CoplanarTM Manifold
2 Quantity Bonnets: 2
R Manifold Specifics: Integral Manifold – CoplanarTM Style
A Inlet: Female
S Material: 1.4401 / 1.4404 / 316 / 316L
A

Bonnet: PTFE

-
N4 Inlet - Thread Size: 1/2 NPT
TF Outlet - Transmitter Interface:
Rosemount 2051/3051 CoplanarTM Pressure Transmitter
2 Valve Manifolds - Coplanar Style
W2RA Type
2 Valve Manifolds Drawing (arrangement)
The dimensions shown in this catalogue apply to standard types. If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.
Ordering Information
BI
2 Valve Manifolds Drawing (arrangement)
MS
Further Information

AS-Schneider 2 Valve Integral Manifolds - CoplanarTM Style are designed for direct mounting to Rosemount 2051/3051 CoplanarTM Pressure Transmitters. The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider 2 Valve Manifolds, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156), degreased and lubricated for oxygen service as well as manifolds for fugitive emission applications.
