CoplanarTM Style - Female x Flanged
AS-Schneider 3 Valve Integral Manifolds - CoplanarTM Style are designed for direct mounting to Rosemount 2051/3051 CoplanarTM Pressure Transmitters. The vent connections 1/4 NPT female are supplied as standard with fitted vent valves.A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.

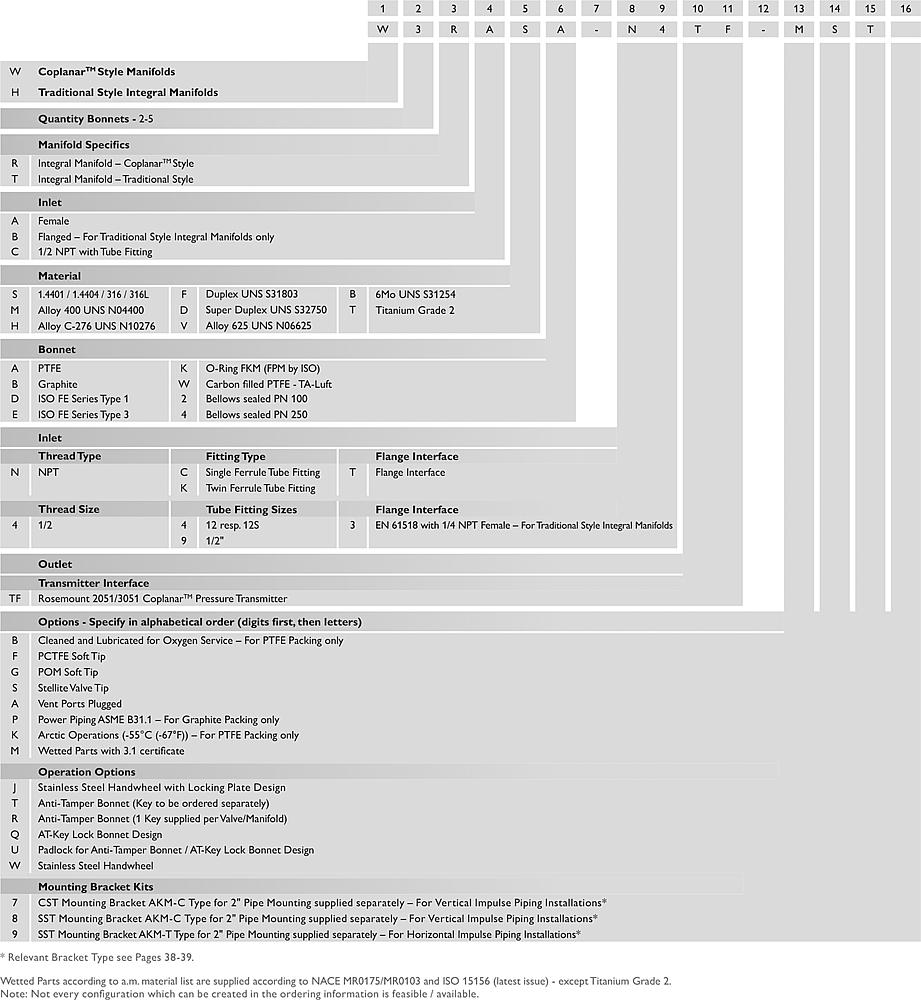

Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:General InformationExample for a typical product acc. to the below mentioned Ordering Information:
Part No.: W3RASA-N4TF
|W||CoplanarTM Style Manifold|
|3||Quantity Bonnets: 3|
|R||Manifold Specifics: Integral Manifold – CoplanarTM Style|
|S||Material: 1.4401 / 1.4404 / 316 / 316L|
|N4||Inlet - Thread Size: 1/2 NPT|
|TF||Outlet - Transmitter Interface:
Rosemount 2051/3051 CoplanarTM Pressure Transmitter
AS-Schneider 3 Valve Integral Manifolds - CoplanarTM Style are designed for direct mounting to Rosemount 2051/3051 CoplanarTM Pressure Transmitters. The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider 3 Valve Manifolds, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156), degreased and lubricated for oxygen service as well as manifolds for fugitive emission applications.
