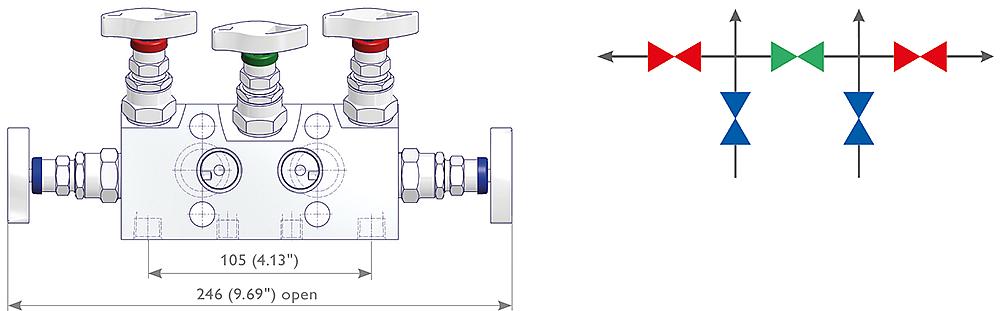

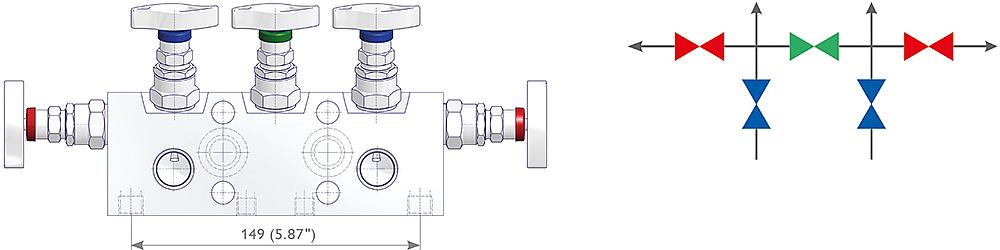

AS-Schneider Direct Mount 5 Valve Manifolds (Wafer Style) are designed for direct mounting to Differential Pressure Transmitters with standard flange connection in accordance with DIN EN 61518 / IEC 61518. The vent ports 1/4 NPT female are located on bottom face. Pipe plugs are not installed as standard. The IEC 61518-B manifold design is more compact compared to the IEC 61518-A design, but is only suitable to the AKM-U Type Mounting Bracket.A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.
Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:General InformationExample for a typical product acc. to the below mentioned Ordering Information:

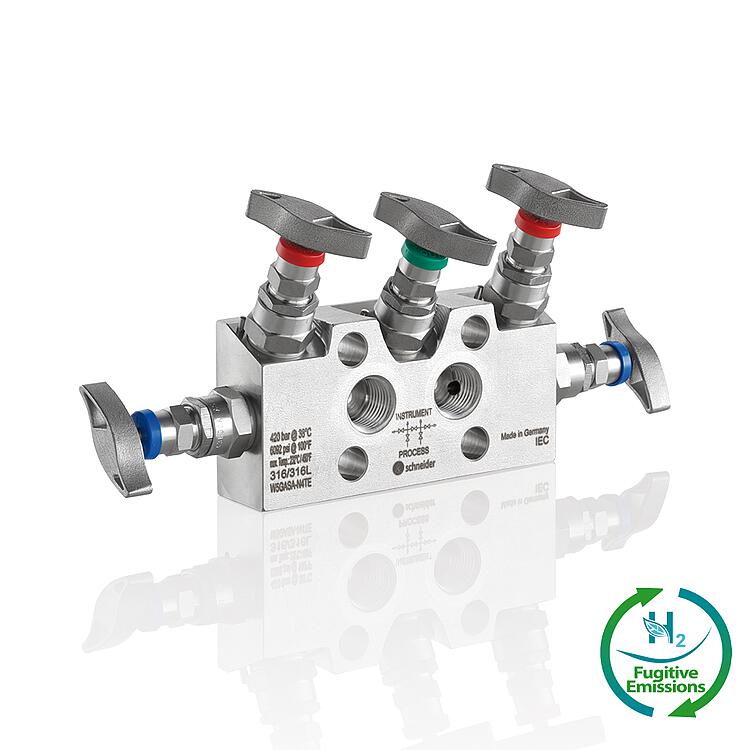

Part No.: W5GASA-N4TE
|W||Wafer Style Manifold|
|5||Quantity Bonnets: 5|
|G||Manifold Specifics: Vent Ports on Bottom Face
of the 5 Valve Manifold
|S||Material: 1.4401 / 1.4404 / 316 / 316L|
|N4||Inlet - Thread Size: 1/2 NPT|
|TE||Outlet - Transmitter Interface: DIN EN 61518-B|
AS-Schneider Direct Mount 5 Valve Manifolds (Wafer Style) are designed for direct mounting to Differential Pressure Transmitters with standard flange connection in accordance with DIN EN 61518 / IEC 61518. The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider 5 Valve Manifolds, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156), degreased and lubricated for oxygen service as well as manifolds for fugitive emission applications.
