Gauge Protectors

AS-Schneider Gauge Protectors are used to protect pressure-sensing instruments against damage, loss of accuracy, and/or rupture in the event of excessive system pressure. The piston assembly works against an adjustable spring. The piston assembly contains a sealing mechanism to isolate system pressure from the instrument.

The Inlet to Outlet seal is an O-Ring, the sealing to atmosphere is realized by either another O-Ring (system pressures of more than 2 bar/29 psi) or a diaphragm (for system pressures 0.4 up to 2.5 bar/5.8 up to 36.3 psi). As system pressure overcomes the force of the spring, the piston moves, causing the sealing system to close. The outlet side is now isolated from increasing system pressure and the instrument is protected. As system pressure drops to the reopening pressure (25% below the closing pressure), the valve opens again.

The max. allowable (Working) Pressure (PS) is 600 bar (8,702 psi), the max. allowable Temperature (TS) is 80°C (176°F), resp. 60°C (140°F) for our DVGW approved types S005.50.001.00DV / 201.00DV.

The relevant accessories are available; please see below Mounting Bracket Kits and Accessories.

Connections, materials and further options are available, please see below Ordering Information or more detailed under:

General Information
Gauge Protectors

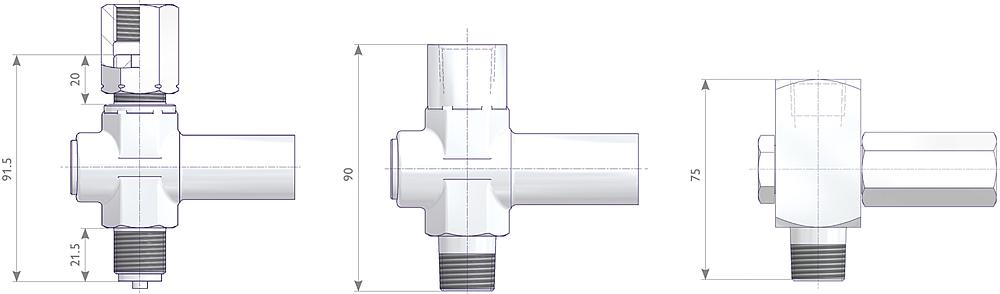

Gauge Protector S005.50                                                                                     Gauge Protector N005.50

Outlet Adjusting Nut                              Outlet Female  NPT

Gauge Protectors Drawing (arrangement)
Ordering Information
Gauge Protectors with Parallel Threads
Inlet Outlet Material   Adjusting Range in bar
0,4 - 2,5 2 - 6 5 - 25 20 - 60 50 - 250 240 - 400 400 - 600
G 1/2 Male    G 1/2
Adjusting Nut
Brass S005.50.001 ..002 ..003 ..004 ..005 ..006 ..007
S005.50.001.00DV ..002.00DV   ..003.00DV ..004.00DV ..005.00DV ..006.00DV ..007.00DV
1.4571 S005.50.201 ..202 ..203 ..204 ..205 ..206 ..207
S005.50.201.00DV ..202.00DV ..203.00DV ..204.00DV ..205.00DV  ..206.00DV ..207.00DV
M 20 x 1,5
Male
M 20 x 1,5
Adjusting Nut
S005.50.251 ..252 ..253 ..254 ..255 ..256 ..257
BIGauge Protectors with NPT Threads
Inlet Outlet Material Adjusting Range in bar
0,4 - 2,5 2 - 6 5 - 25 20 - 60 50 - 250 240 - 400 400 - 600
1/2 NPT Male 1/2 NPT Female Brass S005.50.021 ...022 ...023 ...024 ...025
1.4571 S005.50.221 ...222 ...223 ...224 ...225 ...226
316 N005.50.421 ...422 ...423 ...424 ...425 ...426 ...427
Duplex N005.50.821.0001 ...822.0001 ...823.0001 ...824.0001 ...825.0001 ...826.0001 ...827.0001
Alloy 625 N005.50.821.0009 ...822.0009 ...823.0009 ...824.0009 ...825.0009 ...826.0009 ...827.0009
Alloy 400 N005.50.921.0001 ...922.0001 ...923.0001 ...924.0001 ...925.0001 ...926.0001 ...927.0001
Alloy C-276 N005.50.921.0005 ...922.0005 ...923.0005 ...924.0005 ...925.0005 ...926.0005 ...927.0005
1/4 NPT Male 1/4 NPT Female Brass S005.50.041.01 ...042.01 ...043.01 ...044.01 ...045.01 ...046.01
1.4571 S005.50.241.01 ...242.01 ...243.01 ...244.01 ...245.01 ...246.01 ...247.01
MS
Mounting Bracket Kits and Accessories
Further InformationAS-Schneider Gauge Protectors are used to protect pressure-sensing instruments against damage, loss of accuracy, and/or rupture in the event of excessive system pressure. The AS-Schneider Gauge Protectors, as standard, are rated to 600 bar (8,702 psi). AS-Schneider also provides the gauge protectors for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156), degreased and lubricated for oxygen service and DVGW approved types.
