Gauge Valves

GS Type

AS-Schneider E Series Gauge Valves GS Type are designed for mounting to Pressure Gauges, Pressure Transmitters and Pressure Switches. The standard types are equipped with a bleed screw.

A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.

Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:

General InformationExample for a typical product acc. to the below mentioned Ordering Information:

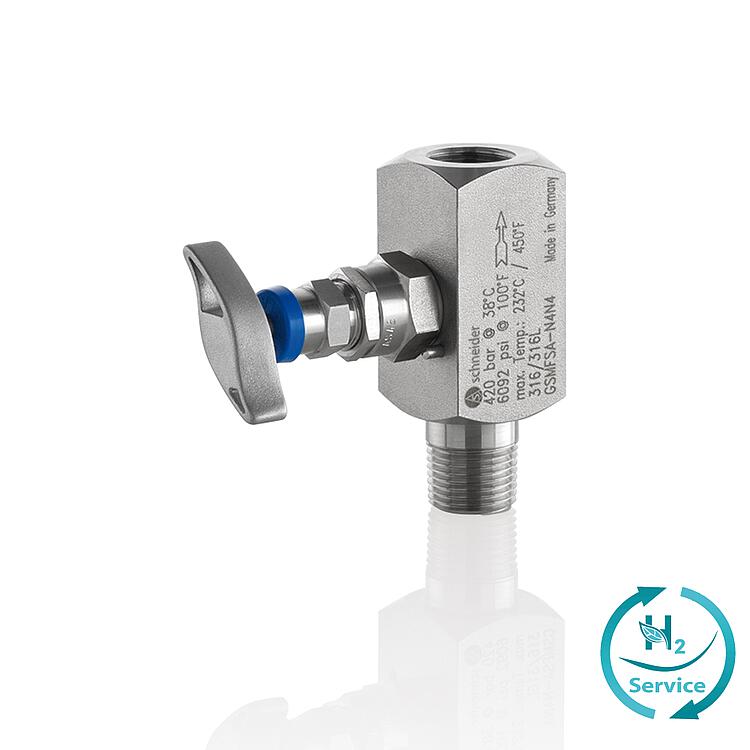

Part No.: GSMFSA-N4N4

G Gauge Valve
S Vent Connection: Bleed Screw
M Inlet: Male Thread
F Outlet: Female Thread
S Material: 1.4401 / 1.4404 / 316 / 316L
A Bonnet: PTFE
-
N4 Inlet Thread Size: 1/2 NPT
N4 Outlet Thread Size: 1/2 NPT
Webshop
Gauge Valves - Without Test Connection

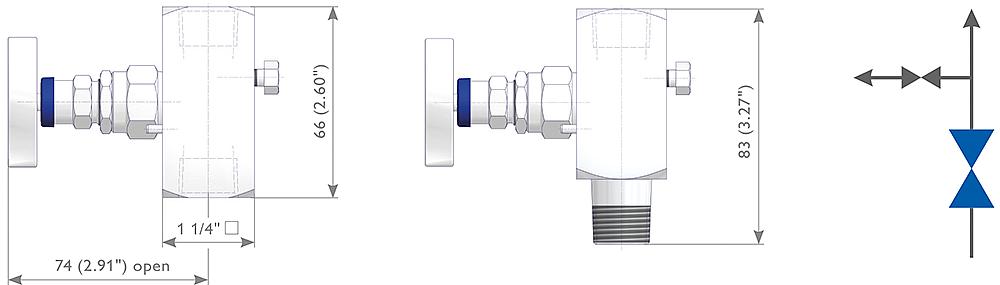

GSFF Type                                                           GSMF Type
Female x Female Threaded                                Male x Female Threaded

Gauge Valves Drawing (arrangement)

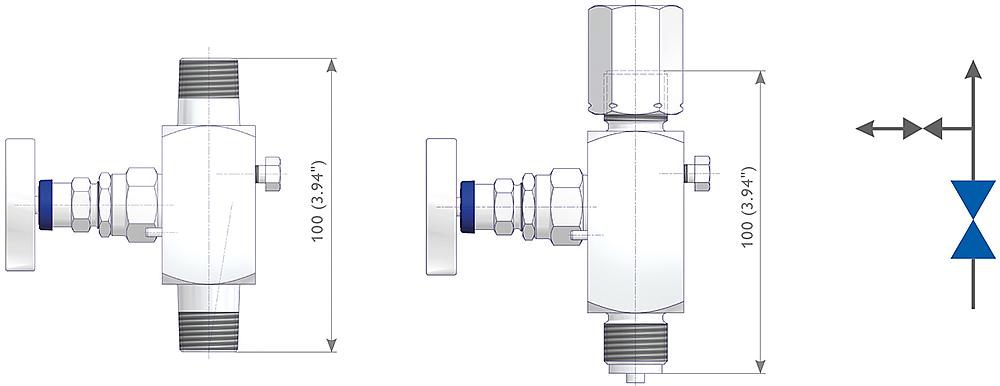

GSMM Type                                                         GSMG Type
Male x Male Threaded                                        Male x Adjusting Nut

Gauge Valves Drawing (arrangement)
The dimensions shown in this catalogue apply to standard types. If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.

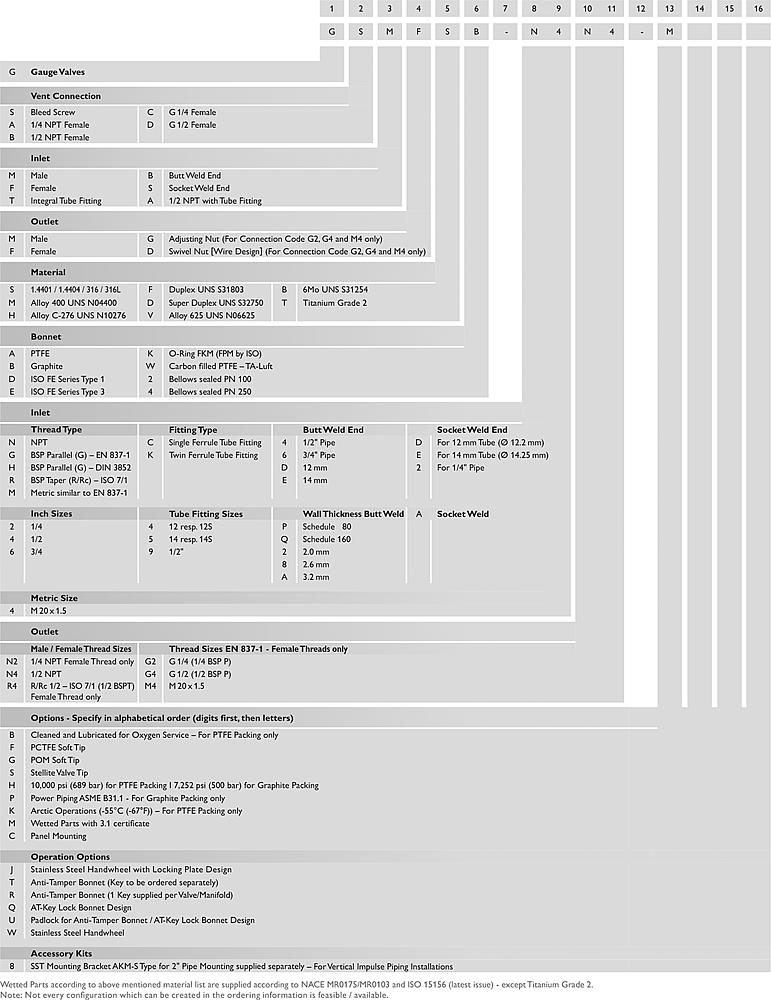

Ordering Information
BI
Gauge Valves Drawing (arrangement)
MS
Further InformationAS-Schneider Gauge Valves are designed for mounting to Pressure Gauges, Pressure Transmitters and Pressure Switches. The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider Gauge Valves, as standard, are rated to 420 bar (6,092 psi), but can be rated at 689 bar (10,000 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156), degreased and lubricated for oxygen service as well as manifolds for fugitive emission applications.
