Description

Rupture Disc Holders

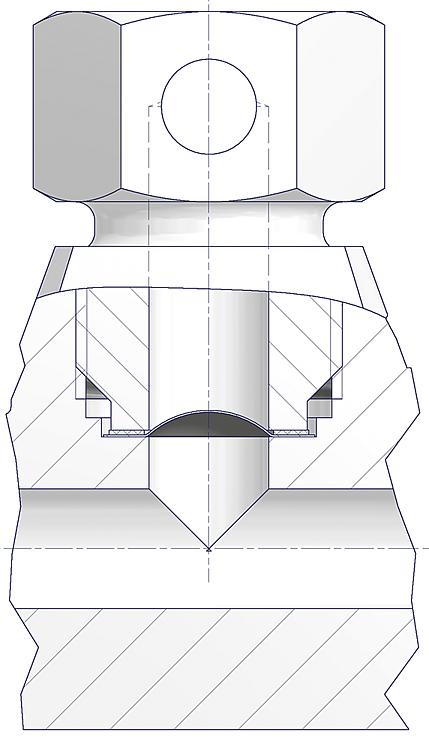

AS-Schneider Rupture Disc Holders are available, as standard, with inlet and outlet connections 1/4 NPT. Rupture Disc Holders are available with or without Rupture Disc. The standard rupture disc is 1,800 psi (124 bar) rated.

Bore Size: Bore Size 1/4" (6.35 mm)

Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:

General InformationExample for a typical product acc. to the below mentioned Ordering Information:

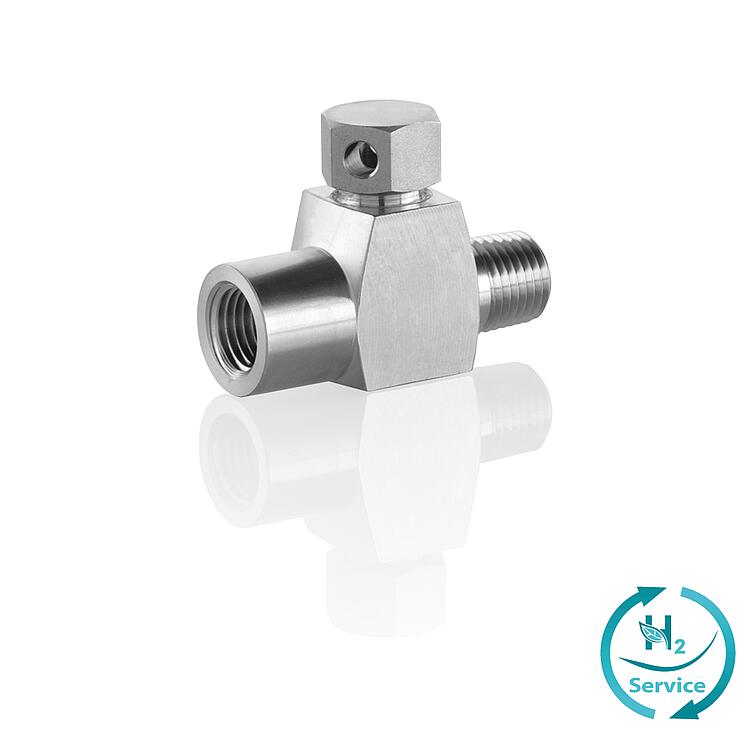

Part No.: RDH-AN2S-18

RDH	Rupture Disc Holder
-
A	Inlet x Outlet: Male x Female
N2	Inlet and Outlet Thread Size: 1/4 NPT
S	Material: 1.4401 / 1.4404 / 316 / 316L
-
18	Option: Assembled Rupture Disc Holder 1,800 psi (124 bar) rated

Rupture Disc Holders

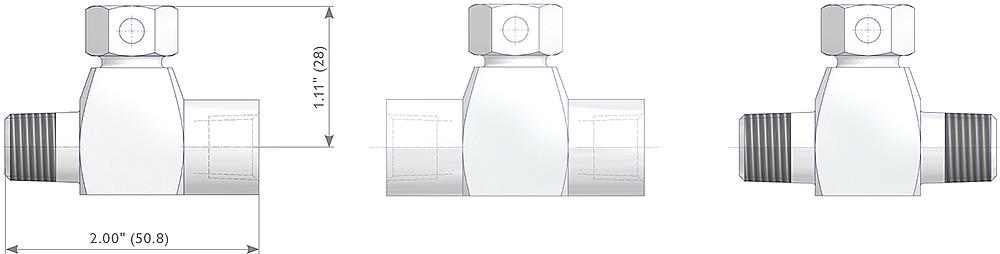

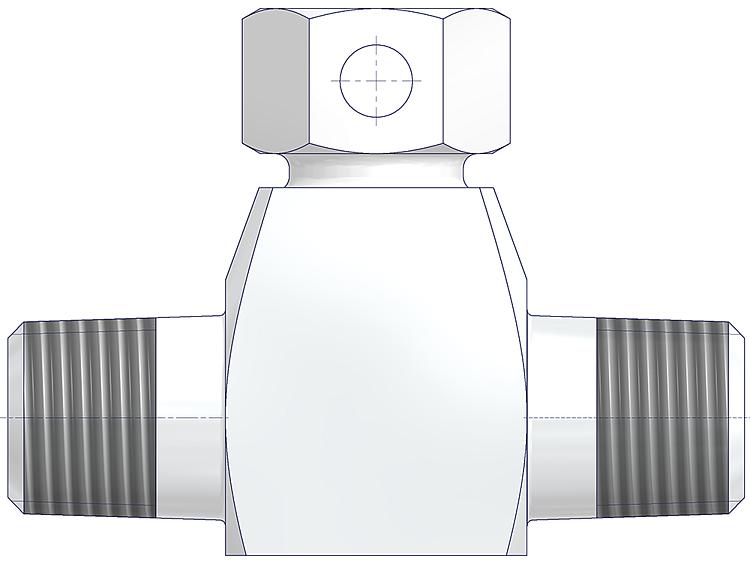

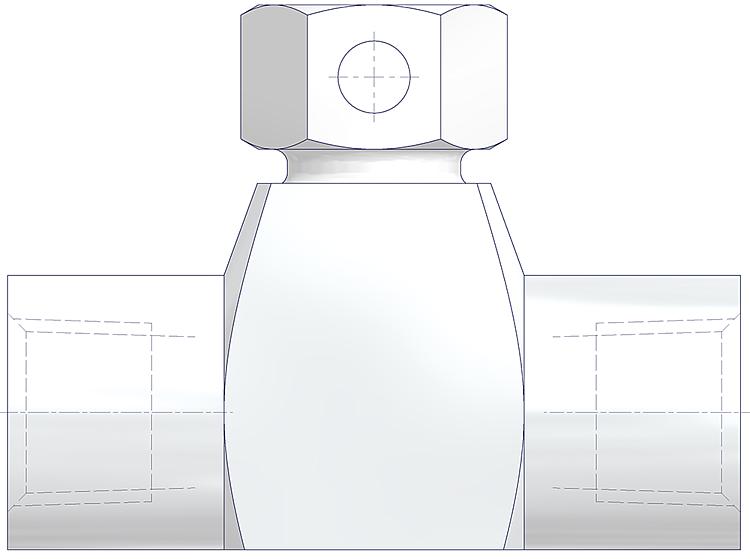

Male x Female Female x Female Male x Male

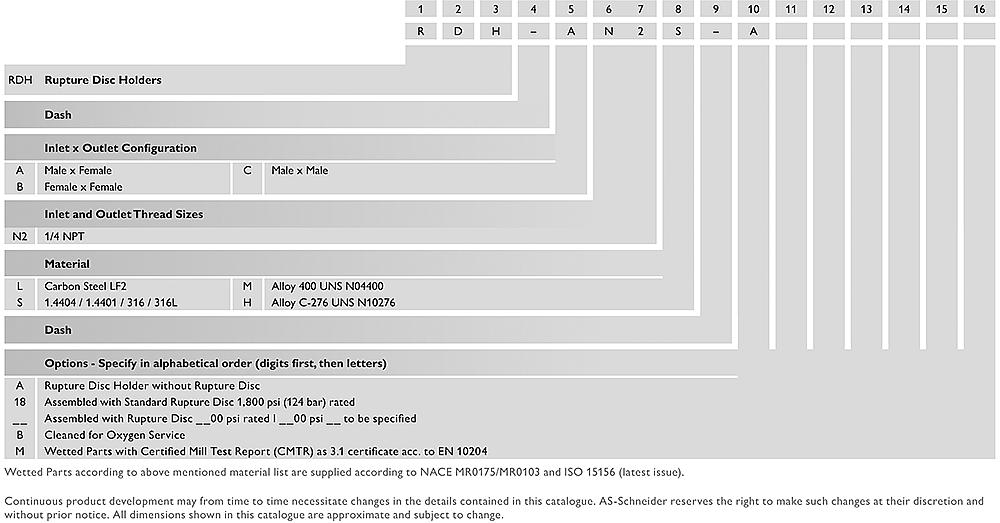

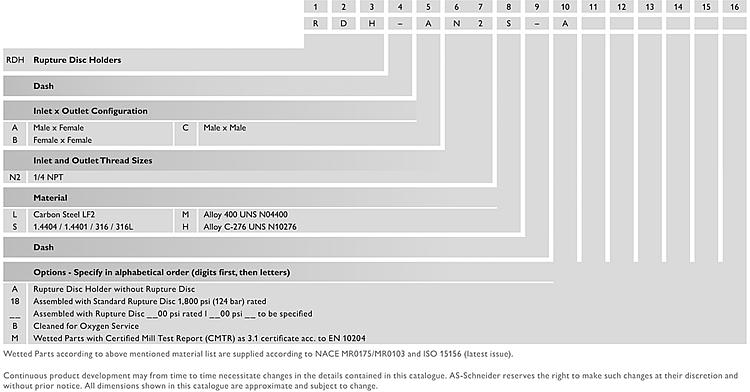

Ordering Information

Further InformationAS-Schneider Rupture Disc Holders are available, as standard, with inlet and outlet connections 1/4 NPT. Rupture Disc Holders are available with or without Rupture Disc. The standard rupture disc is 1,800 psi (124 bar) rated. AS-Schneider also provides the holders for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156) and degreased and for oxygen service.
