Monoflanges and VariAS-Blocks
General Features
Block & Bleed Types
Features one ball valve and a needle valve for venting.

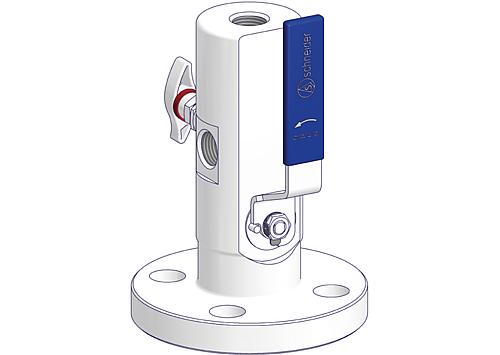

Flange x Thread

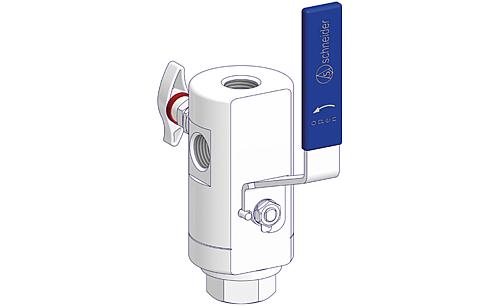

Thread x Thread
Double Block & Bleed Needle Valve Options
Features two independently operable needle valves for isolation and a needle valve for venting.

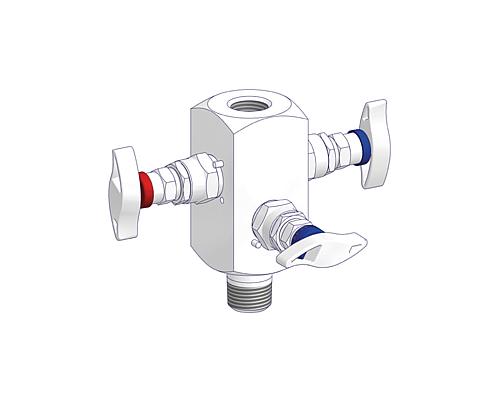

Manifold Type C
(see Catalogue AS-2601 I E Series Valves and Manifolds)
Thread x Thread

10 mm Bore Size
The max. allowable (Working) Pressure (PS) is limited to 420 bar (6,092 psi).

Process Monoflange
Double Block & Bleed (OS&Y / Needle / Needle)

Instrument Monoflange
Double Block & Bleed (Needle / Needle / Needle)
