Description
Angle Needle Valves Standard
  • Angle Needle Valves Standard
  • Angle Needle Valves Standard
  • Angle Needle Valves Standard
  • Angle Needle Valves Standard

Angle Needle Valves

Type S360

AS-Schneider Angle Needle Valve Type S 360 is available with a lot of options. This valve type is providing, as standard, internal stem thread, an integral valve seat and a non-rotating needle tip. The valve body is die-forged.

Bore Size: 0.315" (8 mm)

Please contact the factory for Your Angle Pattern Needle Valve.
Angle Needle Valves Type S360

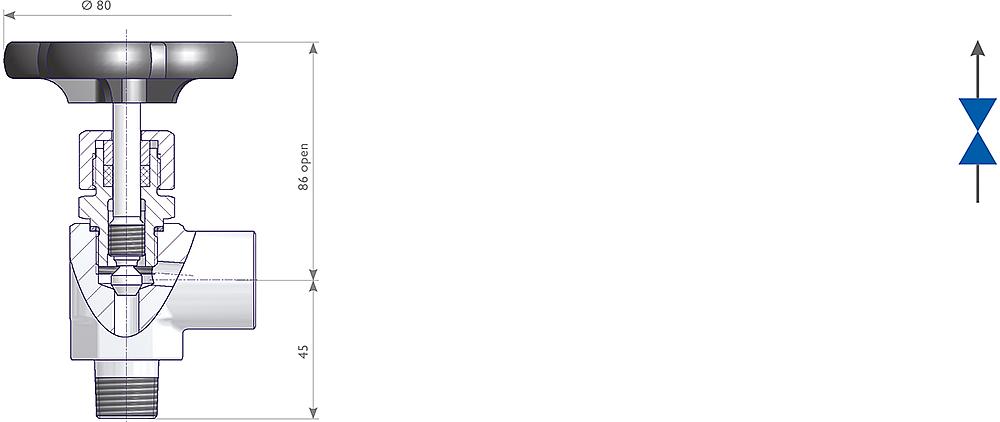

Angle Needle Valves Drawing (arrangement)
Further InformationAS-Schneider Angle Needle Valve Type S 360 is available with a lot of options. This valve type is providing, as standard, internal stem thread, an integral valve seat and a non-rotating needle tip. The robust design of the valves gives long service life and optimum operating comfort. The AS-Schneider Angle Needle Valves, as standard, are rated to 400 bar (5,801 psi). AS-Schneider also provides the needle valves degreased and lubricated for oxygen service as well as valves for fugitive emission applications.
