Bolted Bonnet Needle Valves

Type A2

AS-Schneider Bolted Bonnet Needle Valve Type A2 is available with a lot of options. Following design features characterize the A1 valve: External Stem Thread, Valve Stem with cold rolled threads, Non-rotating Needle and back seat design and an Integral Valve Seat.

Bore Size: 0.787" (20 mm)

Connections, materials and further options are available, please see below Ordering Information or more detailed under:

General InformationExample for a typical product acc. to the below mentioned Ordering Information:

Part No.: A2B-D6AD6A-SAK

A2 Bolted Bonnet Needle Valve Type A2
B Packing: Graphite
-
D Inlet Connection: Socket Weld End
6 Pipe Dimension: 3/4" Pipe
A Wall Thickness: Socket Weld End
D Outlet Connection: Socket Weld End
6 Pipe Dimension: 3/4" Pipe
A Wall Thickness: Socket Weld End
-
S Material: 316 / 316L
A Vent Connection: Without
K Operation Options: T-Handle
Bolted Bonnet Needle Valve Type A2
Bolted Bonnet Needle Valves Drawing (arrangement)

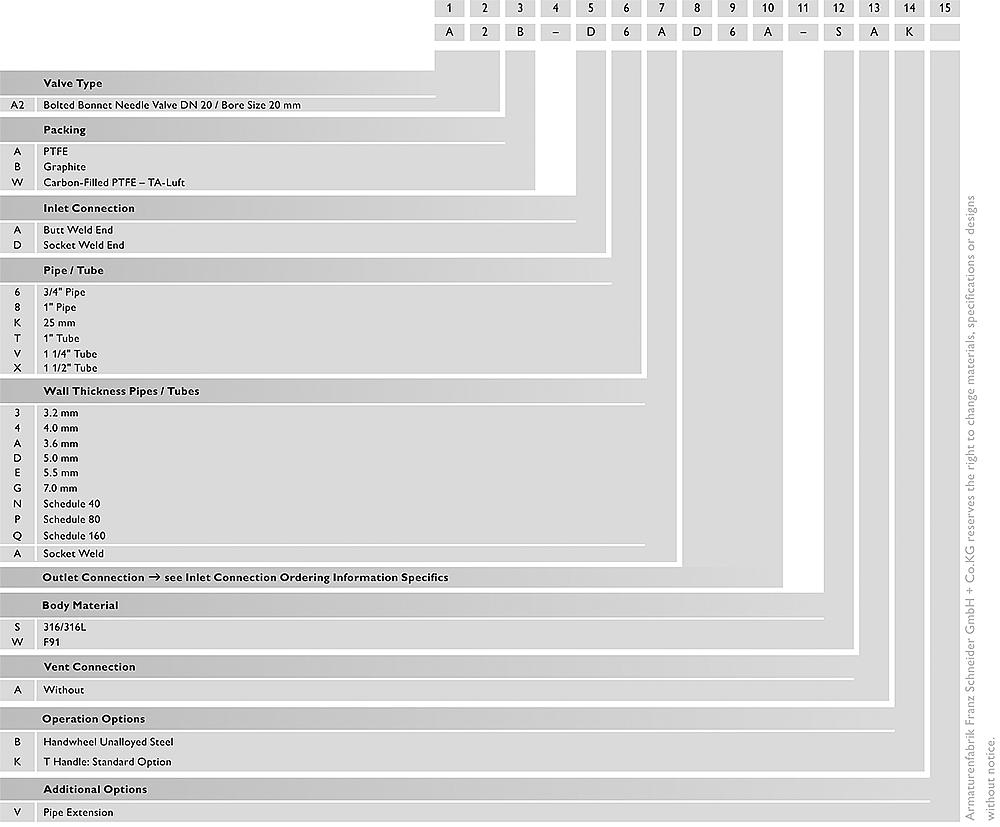

Ordering Information
BI
Bolted Bonnet Needle Valves Drawing (arrangement)
MS
Further InformationAS-Schneider Bolted Bonnet Needle Valve Type A2 is available with a lot of options. Following design features characterize the A1 valve: External Stem Thread, Valve Stem with cold rolled threads, Non-rotating Needle and back seat design and an Integral Valve Seat. The robust design of the valves gives long service life and optimum operating comfort. The AS-Schneider Bolted Bonnet Needle Valves, as standard, are rated to 420 bar (6,092 psi).
