Hand Valves

Type H

AS-Schneider E Series Hand Valves are available with a lot of options. The below mentioned valves (see drawings) are the standard types (1/2 NPT threaded, except the HATT Type). If you need the dimensions for your individual type please contact the factory.

Bore Size: 0.197" (5 mm) - (Angle Hand Valve Bore Size: 10 mm)

A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.

Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:

General InformationExample for a typical product acc. to the below mentioned Ordering Information:

Part No.: HAMFSA-N4N4

H Hand Valve Type H
A Basic Design: Screwed Bonnet
M Inlet: Male Thread
F Outlet: Female Thread
S Material: 1.4401 / 1.4404 / 316 / 316L
A Bonnet: PTFE
-
N4 Inlet Thread Size: 1/2 NPT
N4 Outlet Thread Size: 1/2 NPT
Standard Hand Valves

HAFF Type                                                                          HAMF Type
Female x Female Threaded                                               Male x Female Threaded

Hand Valves Drawing (arrangement) 1
The dimensions shown in this catalogue apply to standard types. If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.
Hand Valves - Extended Body

HXMF Type - Extended by approx. 3"
Male x Female Threaded

Hand Valves Drawing (arrangement) 2
The dimensions shown in this catalogue apply to standard types. If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.
Angle Hand Valve Bore Size 10 mm
HLMF Type
Hand Valves Drawing (arrangement) 3
The dimensions shown in this catalogue apply to standard types. If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.

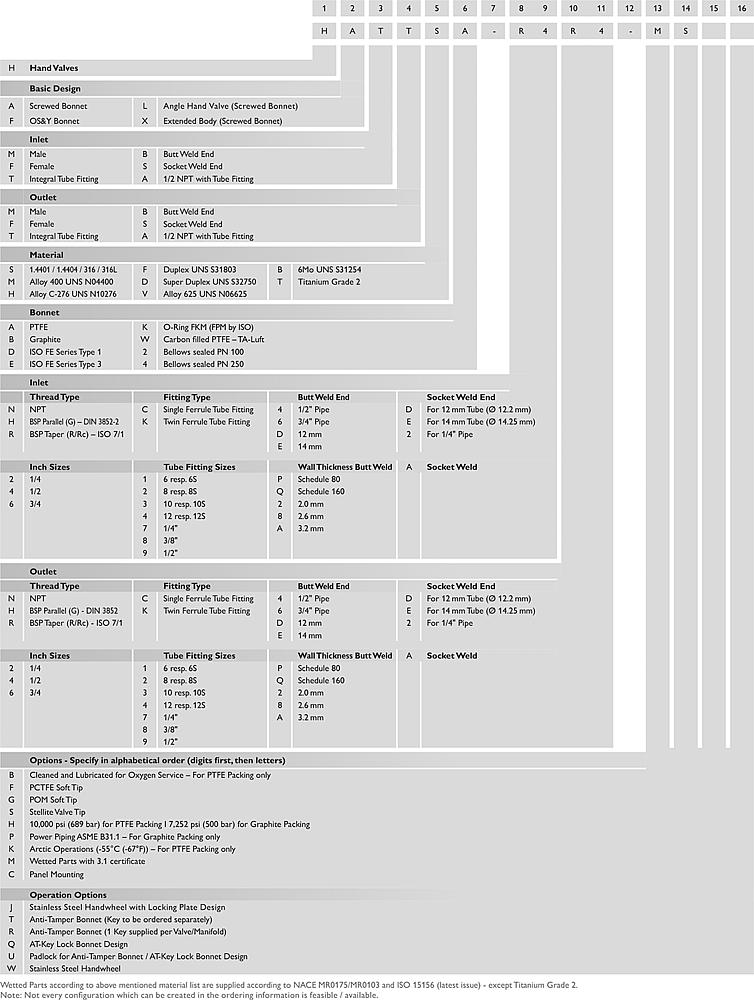

Ordering Information
Hand Valves Drawing (dimension) 1
Mounting Bracket Kits and Accessories
Further InformationAS-Schneider Hand Valves are available with a lot of options. The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider Hand Valves, as standard, are rated to 420 bar (6,092 psi) ), but can be rated at 689 bar (10,000 psi). AS-Schneider also provides the valves for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156) and degreased and lubricated for oxygen service.
