Integral Bonnet Needle Valves

Type S338

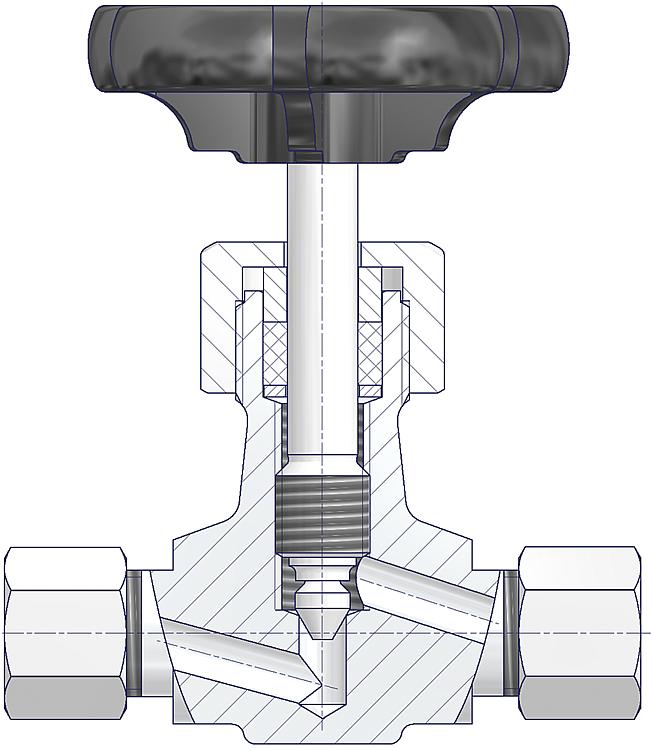

AS-Schneider Needle Valve Type S338 is available with a lot of options. This valve type is providing, as standard, internal stem thread, an integral valve seat and a non-rotating needle tip.

Bore Size: 0.236" (6 mm)

Connections, materials and further options are available, please see below Ordering Information or more detailed under:

General Information
Integral Bonnet Needle Valves Type S338

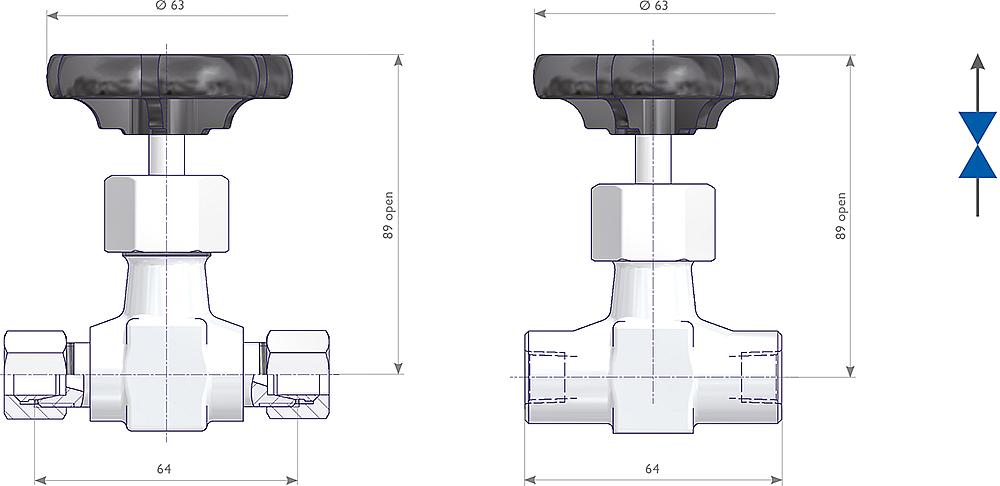

Fitting Connections Size S/L                                                  Female Threads

Integral Bonnet Needle Valves Drawing (arrangement)
Ordering Information
Needle Valve with Tube Fittings Sizes SMS
Inlet Outlet Part Number
Material
Tube Fitting Sizes 1.0460 1.4571
6S S338.03.130 S338.03.230
8S S338.03.120 S338.03.220
10S S338.03.110 S338.03.210
12S S338.03.100 S338.03.200
6L S338.03.180 S338.03.280
8L S338.03.170 S338.03.270
10L S338.03.160 S338.03.260
12L S338.03.150 S338.03.250

BINeedle Valve with Tube Fittings Sizes S
Inlet    Outlet    Part Number
Material
1.0460 1.4571
1/4 NPT Female S338.08.110 S338.08.210
G 1/4 Female S338.08.115 S338.08.215
G 3/8 Female S338.08.116 S338.08.216
Further InformationAS-Schneider Needle Valve Type S338 is available with a lot of options. This valve type is providing, as standard, internal stem thread, an integral valve seat and a non-rotating needle tip. The robust design of the valves gives long service life and optimum operating comfort. The AS-Schneider Needle Valves, as standard, are rated to 400 bar (5,801 psi). AS-Schneider also provides the needle valves degreased and lubricated for oxygen service as well as valves for fugitive emission applications.
