Y-Pattern Needle Valves

Type S371

AS-Schneider Y-Pattern Needle Valve Type S371 is available with a lot of options. This valve type is providing, as standard, external stem thread, an integral valve seat and a stem with cold rolled surface, back seat and non-rotating needle tip. The Y-Pattern  Needle Valve has a Straight-Through Design and is fully roddable. The valve body is die-forged.

Standard Packing: Graphite

Bore Size: 0.315" (8 m)

Please contact the factory for Your Y-Pattern Needle Valve.
Y-Pattern Needle Valves Type S371

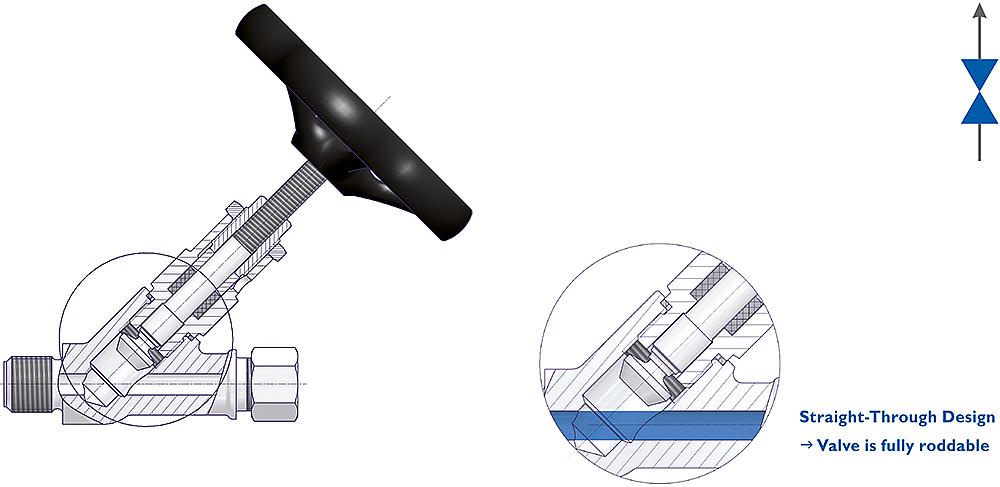

Y-Pattern Needle Valves Drawing (arrangement)
Further InformationAS-Schneider Y-Pattern Needle Valve Type S 371 is available with a lot of options. This valve type is providing, as standard, external stem thread, an integral valve seat and a stem with cold rolled surface, back seat and non-rotating needle tip. The Y-Pattern Needle Valve has a Straight-Through Design and is fully roddable. The robust design of the valves gives long service life and optimum operating comfort. The AS-Schneider Y-Pattern Needle Valves, as standard, are rated to 160 bar (2,321 psi). AS-Schneider also provides the needle valves degreased and lubricated for oxygen service.
