AS-Schneider Soft Seated Direct Mount 5 Valve Manifolds H5S/H5L Type are flanged on the process side to an Orifice Meter-Stabilized connector-(if necessary Spacer / 2 Valve Manifold)-Assembly and on the outlet to a Differential Pressure Transmitter resp. an Adapter-Transmitter-Assembly. The standard vent connection is 1/4 NPT female and is supplied with a fitted Bug Plug. The test ports 1/4 NPT female are plugged by default. Accessory Kits incl. washers are required for manifold to transmitter mounting, because the manifolds are provided with slotted bolt holes.

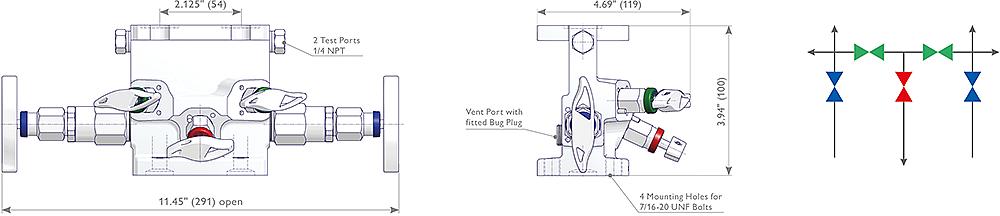

The H5S Type is used for Vertical Installations.

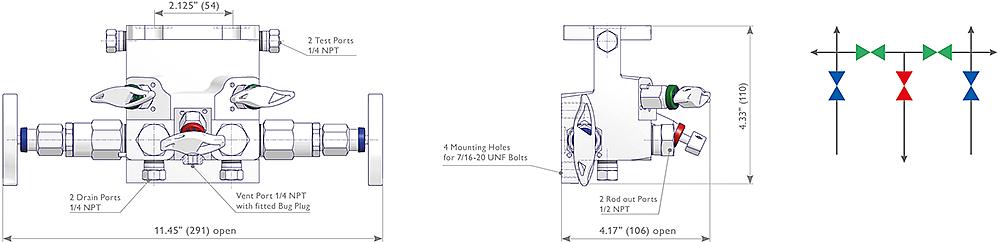

The H5L Type is applicable for Horizontal Installations.
- Isolate Valves - 3/8" (9.5 mm)
- Equalize and Vent Valves - 0.138" (3.5 mm)
The process to instrument connection is fully roddable due to the Cone Design Valve Seat of the Isolate Valves.
Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:General InformationExample for a typical product acc. to the below mentioned Ordering Information:
Part No.: H5S-SKB
|H||H-Style Manifold - Flange x Flange|
|5||Quantity Bonnets: 5|
|S||Manifold Design: Straight Type, Bore Size 3/8" (9.5 mm)|
|S||Material: 1.4401 / 1.4404 / 316 / 316L|
|K||Stem Seal / Packing: O-Ring FKM|
|B||Seat Material: POM x POM|
