Manifolds for Ultrasonic Flow Meter Applications

U2F/U2T Type

AS-Schneider U2F/U2T Type Manifolds are designed for close coupled installations to ultrasonic flow meters. AS-Schneider is providing 2 types with regard to the instrument connection, a flanged style and a threaded style. Both types are Multiport Types (3 outlet ports) - Details see below drawings. The process connections, as standard, are 1/2 NPT female threaded. Both manifolds styles are supplied with a stabilizer shoe.

Bore Size:
-
Isolate Valves - 1/4" (6.35 mm) - Roddable
- Vent Valves - 0.138" (3.5 mm)

A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.

Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:

General InformationExample for a typical product acc. to the below mentioned Ordering Information:

Part No.: U2T-SABN4

U Manifold for Ultrasonic Flow Meter Applications
2 Quantity Bonnets: 2
T Manifold Design: Threaded Style
-
S Material: 1.4401 / 1.4404 / 316 / 316L
A Stem Seal / Packing: PTFE
B Seat Material: POM x POM
N4 Inlet - Thread Size: 1/2 NPT
Manifolds for Ultrasonic Flow Meter Applications - Flanged Style
U2F Type

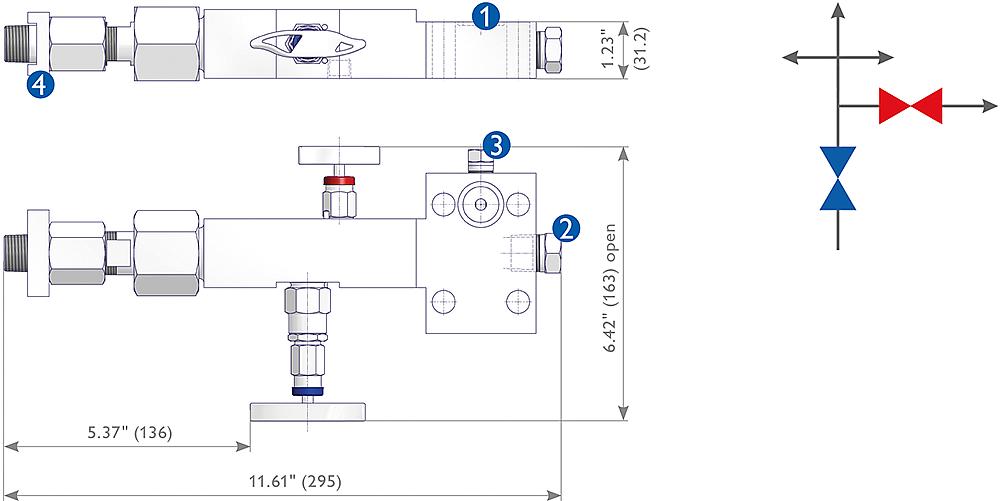

Flanged Style with Multiport Type (3 outlet ports): ① Flange Connection ② 1/2 NPT Female Rod Out Port plugged and ③ 1/4 NPT Female Vent/Calibrate Port ④ Stabilizer Shoe

Manifolds for Ultrasonic Flow Meter Applications Drawing (arrangement)
The dimensions shown in this catalogue apply to standard types. If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.
Manifolds for Ultrasonic Flow Meter Applications - Threaded Style
U2T Type

Threaded Style with Multiport Type: 3 Outlet Ports 1/2 NPT Female; Pipe Plugs / Vent Valves to be ordered separately.

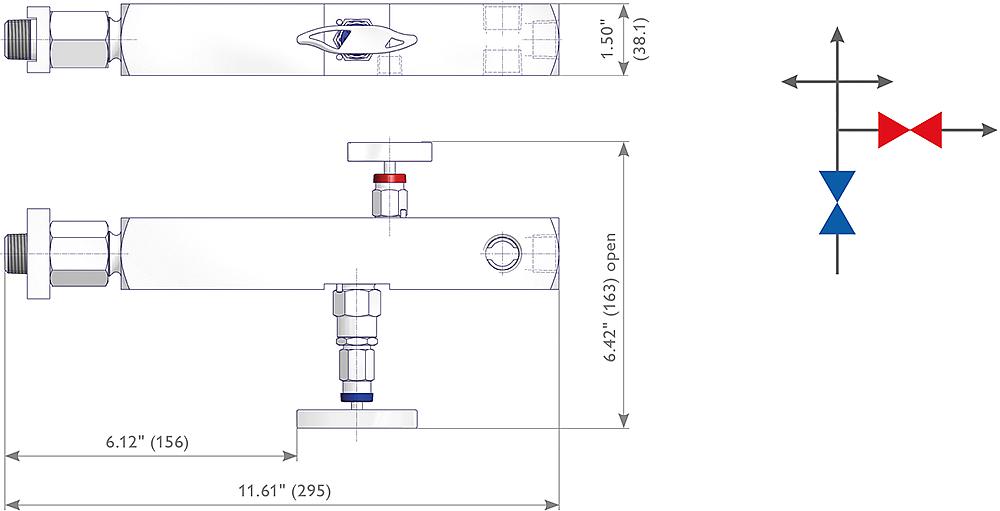

Manifolds for Ultrasonic Flow Meter Applications Drawing (arrangement)
The dimensions shown in this catalogue apply to standard types. If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.
Ordering Information
BI
Manifolds for Ultrasonic Flow Meter Applications Drawing (arrangement)
MS
Further InformationAS-Schneider U2F/U2T Type Manifolds are designed for close coupled installations to ultrasonic flow meters. AS-Schneider is providing 2 types with regard to the instrument connection, a flanged style and a threaded style. Both types are Multiport Types. The process connections, as standard, are 1/2 NPT female threaded. The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider Manifolds, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156) and degreased and lubricated for oxygen service.
