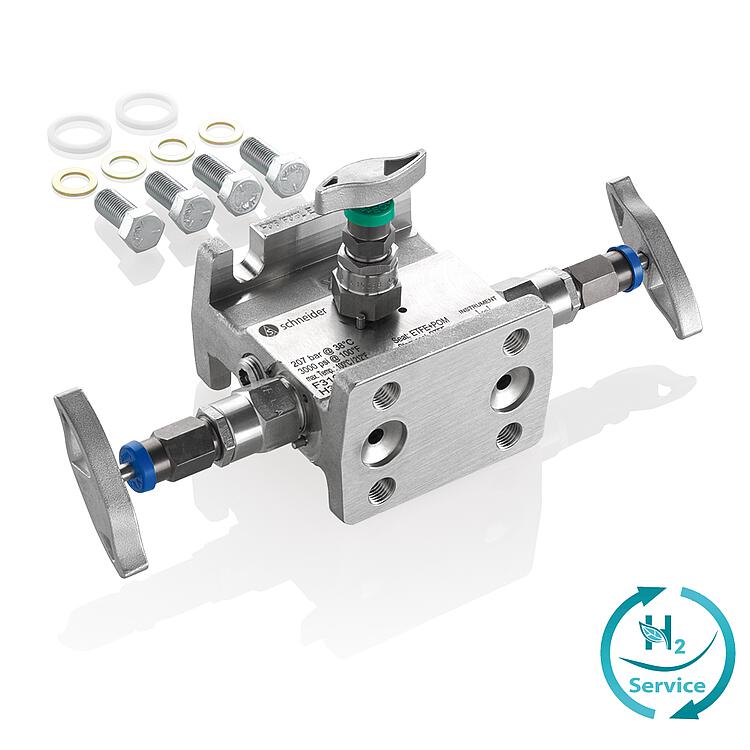

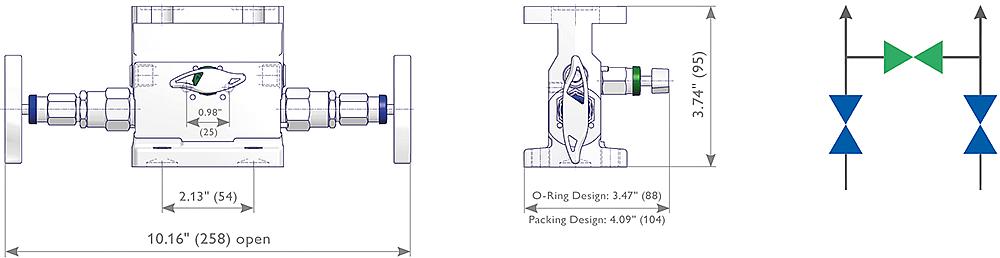

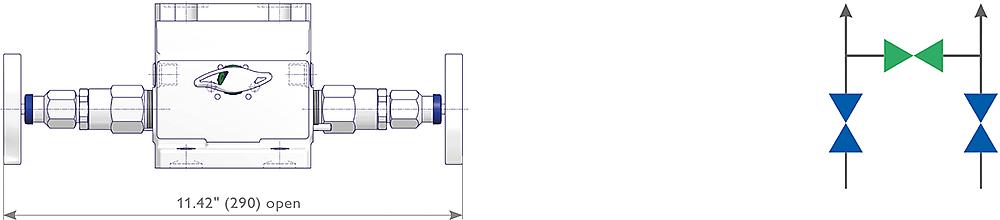

AS-Schneider Soft Seated Direct Mount Manifolds H3A/H3S Type are designed for direct mounting to Differential Pressure Transmitters. The inlet connection (process connection), as standard, is flanged style. The standard 3 Valve Manifolds H3A/H3S Type have no vent connections. Accessory kits incl. washers are required for manifold to transmitter mounting, because the manifolds are provided with slotted bolt holes.
- Isolate Valves - 1/4" (6.35 mm) or 3/8" (9.5 mm)
- Equalize and Vent Valves - 0.138" (3.5 mm)
The process to instrument connection is fully roddable due to the Cone Design Valve Seat of the Isolate Valves.
Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:General InformationExample for a typical product acc. to the below mentioned Ordering Information:
Part No.: H3A-SAA
|H||T-Style Manifold - Flange x Flange|
|3||Quantity Bonnets: 3|
|A||Manifold Design - Bore Size Isolate Valves: 1/4" (6.35 mm)|
|S||Material: 1.4401 / 1.4404 / 316 / 316L|
|A||Stem Seal / Packing: PTFE|
|A||Seat Material: ETFE x POM|
