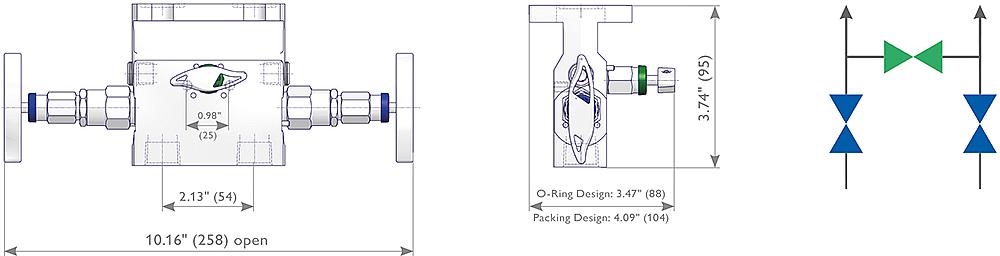

AS-Schneider Soft Seated Direct Mount Manifolds T3A/T3S Type are designed for direct mounting to Differential Pressure Transmitters. The inlet connections (process connection), as standard, are 1/2 NPT female threaded. The standard 3 Valve Manifolds T3A/T3S Type have no vent connections. Accessory kits incl. washers are required for manifold to transmitter mounting, because the manifolds are provided with slotted bolt holes.
- Isolate Valves - 1/4" (6.35 mm) or 3/8" (9.5 mm)
- Equalize Valves - 0.138" (3.5 mm)
The process to instrument connection is fully roddable due to the Cone Design Valve Seat of the Isolate Valves.
Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:General InformationExample for a typical product acc. to the below mentioned Ordering Information:

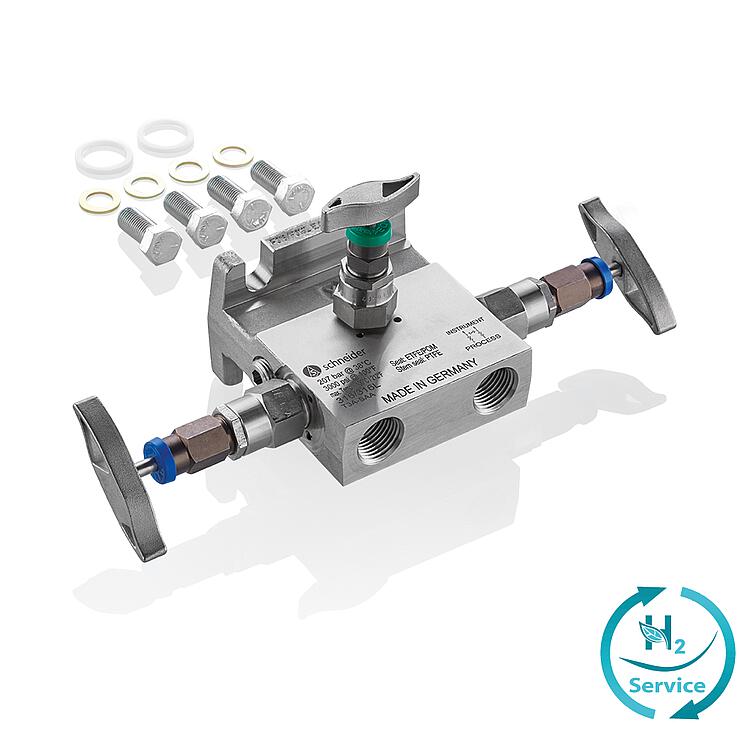

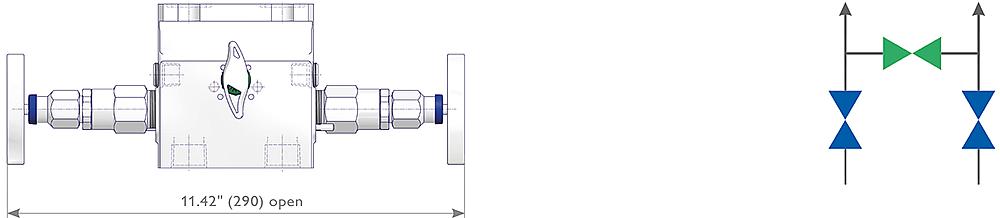

Part No.: T3S-SKA-1D
|T||T-Style Manifold - Thread x Flange|
|3||Quantity Bonnets: 3|
|S||Manifold Design - Bore Size Isolate Valves: 3/8" (9.5 mm)|
|S||Material: 1.4401 / 1.4404 / 316 / 316L|
|K||Stem Seal / Packing: O-Ring FKM|
|A||Seat Material: ETFE x POM|
|1||Accessory Kit: In CS - to mount Transmitters with Traditional Flange|
|D||Option: Dielectric Isolation|
