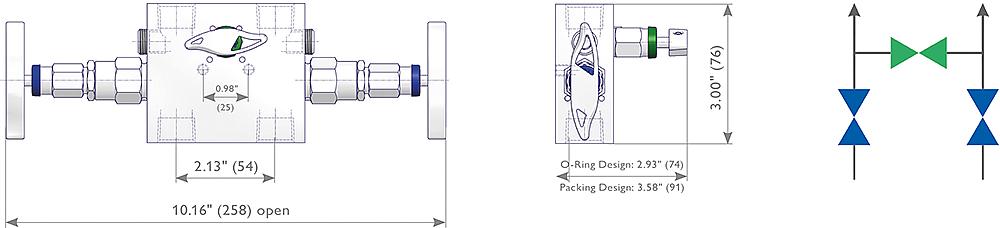

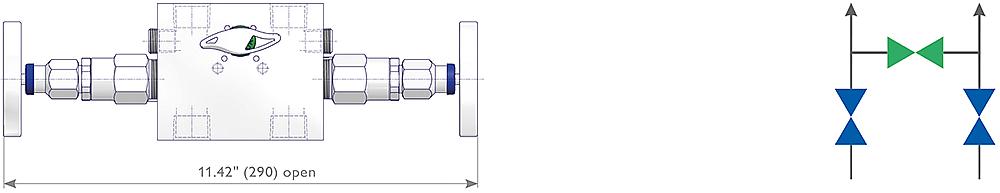

AS-Schneider Soft Seated Remote Mounted Manifolds R3A/R3S Type are designed for remote installation from Differential Pressure Transmitters. The inlet and outlet connections, as standard, are 1/2 NPT female threaded. The standard 3 Valve Manifolds R3A/R3S Type have no vent connections.
- Isolate Valves - 1/4" (6.35 mm) or 3/8" (9.5 mm)
- Equalize Valves - 0.138" (3.5 mm)
The process to instrument connection is fully roddable due to the Cone Design Valve Seat of the Isolate Valves.
Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:General InformationExample for a typical product acc. to the below mentioned Ordering Information:
Part No.: R3A-SAA
|R||Remote Mounted Manifold|
|3||Quantity Bonnets: 3|
|A||Manifold Design - Bore Size Isolate Valves: 1/4" (6.35 mm)|
|S||Material: 1.4401 / 1.4404 / 316 / 316L|
|A||Stem Seal / Packing: PTFE|
|A||Seat Material: ETFE x POM|
