5 Valve Manifolds

R5A/R5S Type

AS-Schneider Soft Seated Remote Mounted Manifolds R5A/R5S Type are designed for remote installation from Differential Pressure Transmitters. The inlet and outlet connections, as standard, are 1/2 NPT female threaded. The standard vent connection is 1/4 NPT female and is supplied with a fitted Bug Plug as standard. The test ports 1/4 NPT female are plugged by default.

Bore Size:
- Isolate Valves - 1/4" (6.35 mm) or 3/8" (9.5 mm)
- Equalize and Vent Valves - 0.138" (3.5 mm)

The process to instrument connection is fully roddable due to the Cone Design Valve Seat of the Isolate Valves.

A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.

Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:

General InformationExample for a typical product acc. to the below mentioned Ordering Information:

Part No.: R5A-SAA

R Remote Mounted Manifold
5 Quantity Bonnets: 5
A Manifold Design - Bore Size Isolate Valves: 1/4" (6.35 mm)
-
S Material: 1.4401 / 1.4404 / 316 / 316L
A Stem Seal / Packing: PTFE
A Seat Material: ETFE x POM
Remote Mounted 5 Valve Manifolds

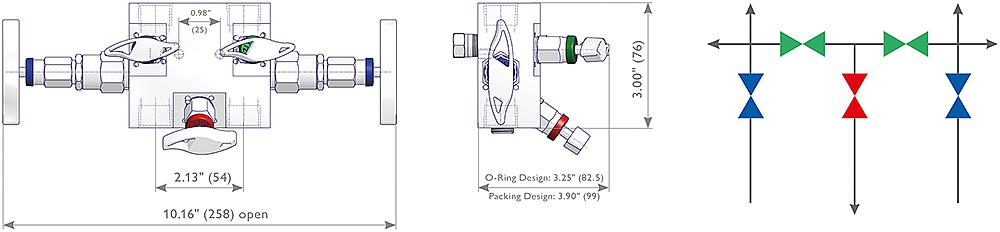

R5A Type
1/4" (6.35 mm) Soft Seat

5 Valve Manifolds Drawing (arrangement)

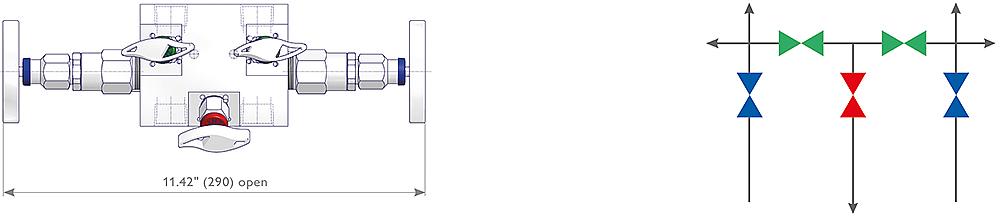

R5S Type
3/8" (9.5 mm) Soft Seat

5 Valve Manifolds Drawing (arrangement)
The dimensions shown in this catalogue apply to standard types. If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.
Ordering Information
BI
5 Valve Manifolds Drawing (arrangement)
MS
Further InformationAS-Schneider Soft Seated Remote Mounted Manifolds R5A/R5S Type are designed for remote installation from Differential Pressure Transmitters. The inlet and outlet connections, as standard, are 1/2 NPT female threaded. The standard vent connection is 1/4 NPT female and is supplied with a fitted Bug Plug as standard. The test ports 1/4 NPT female are plugged by default. The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider Manifolds, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156) and degreased and lubricated for oxygen service.
