Indicator Valves

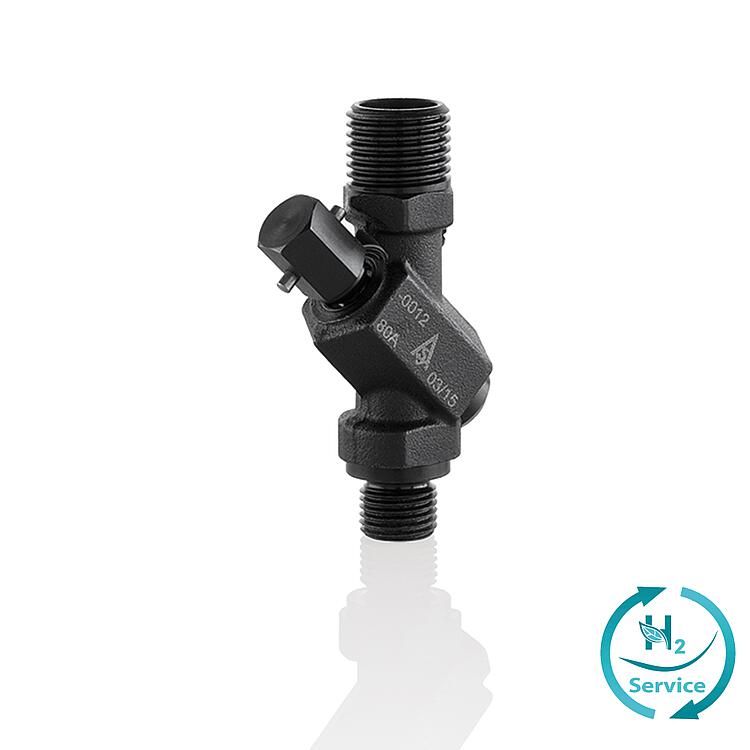

Type N473

AS-Schneider Indicator Valve Type N473 is available with a lot of options. Indicator valves are based on the need to measure and monitor cylinder pressures in large-bore diesel and natural gas engines and gas compressors. Indicator Valve Type N473 allows a reduced installation radius at limited space. Valve opens "against engine pressure" and closes "with engine pressure". Any movement of the valve stem due to engine vibration tends to tighten the valve stem against its seat thus eliminating the possibility of opening under operating conditions. The valve body is die-forged.

Max. allowable (Working) Pressure (PS): 300 bar (4,351 psi)

Bore Size: 0.197" (5 mm)

Connections and materials are available, please see below Ordering Information or more detailed under:

Indicator Valves Type N473

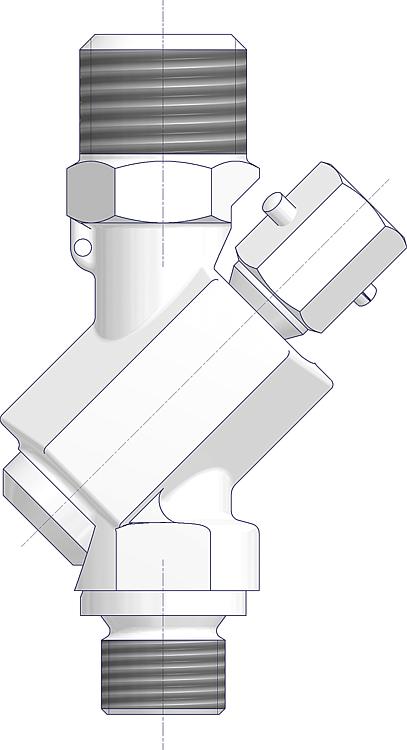

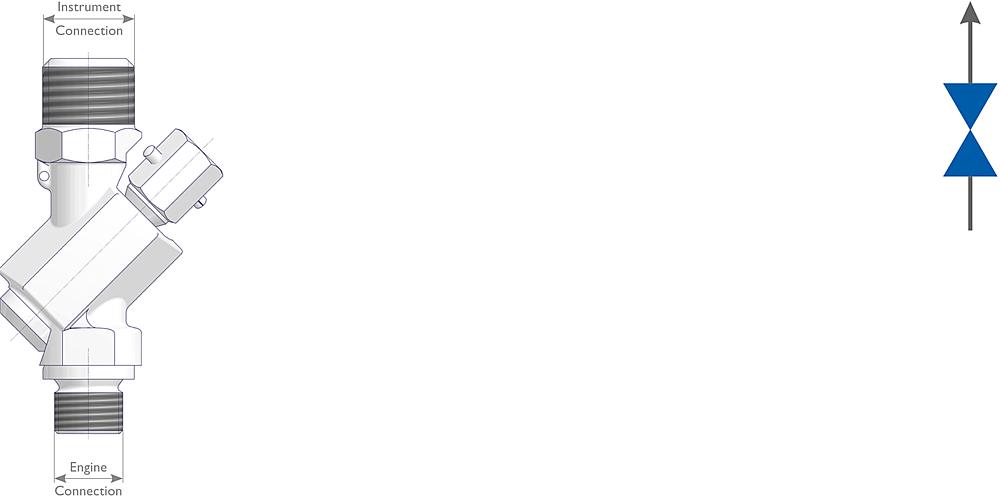

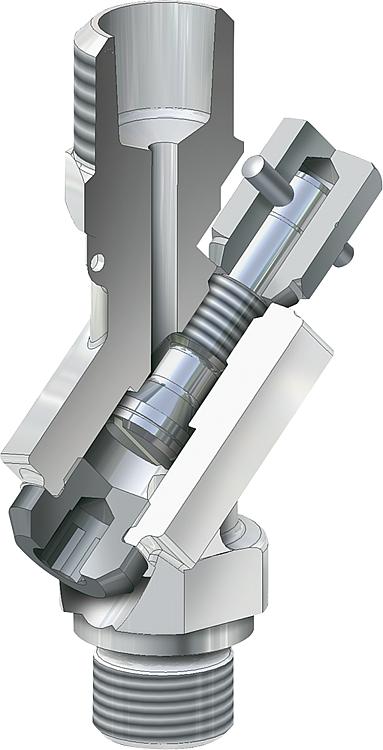

Indicator Valves Drawing (arrangement)
Ordering Information
BI
Engine Connection Instrument Connection Operation Part Number
3/4-10 BSW W 27 x 1/10" T Handle Key N473.97.100.01
M 20 x 2 N473.97.100.06
M 20 x 1.5 c/w Seal Cap N473.97.100.08
1/2 NPT N473.97.100.11
M 22 x 1.5 N473.97.100.12
G 1/2 N473.97.110.02
M 20 x 1.5 N473.97.190.07
MS
Further InformationAS-Schneider Indicator Valve Type N473 is available with a lot of options. Indicator valves are based on the need to measure and monitor cylinder pressures in large-bore diesel and natural gas engines and gas compressors. Indicator Valve Type N473 allows a reduced installation radius at limited space. Valve opens "against engine pressure" and closes "with engine pressure". Any movement of the valve stem due to engine vibration tends to tighten the valve stem against its seat thus eliminating the possibility of opening under operating conditions. The valve body is die-forged. The robust design of the valves gives long service life and optimum operating comfort. The AS-Schneider Indicator Valve Type N473, as standard, is rated to 300 bar (4,351 psi).
