Gauge Cocks
Male Thread x Adjusting Nut
AS-Schneider Gauge Cocks are basically designed, manufactured and tested according to DIN 16261, DIN 16262 and DIN 16263. According to above standards the cocks are applicable for a max. allowable (Working) Pressure (PS) of 6 – 16 bar (87 - 232 psi) and a max. allowable Temperature (TS) of 50°C (122°F) for liquids, gas or vapors. Originally the AS-Schneider Gauge Cocks were designed for a max. allowable (Working) Pressure (PS) of 25 bar (363 psi) for the G 1/2 models. We kept this pressure class for this kind of gauge cocks, see below Ordering Information.
Operating Positions are marked on top of the plug (see also further comments under General Information).
Connections, materials and further options are available, please see below Ordering Information or more detailed under:
General InformationWebshopWithout Test Connection With Test Connection With Test Flange With Test Flange

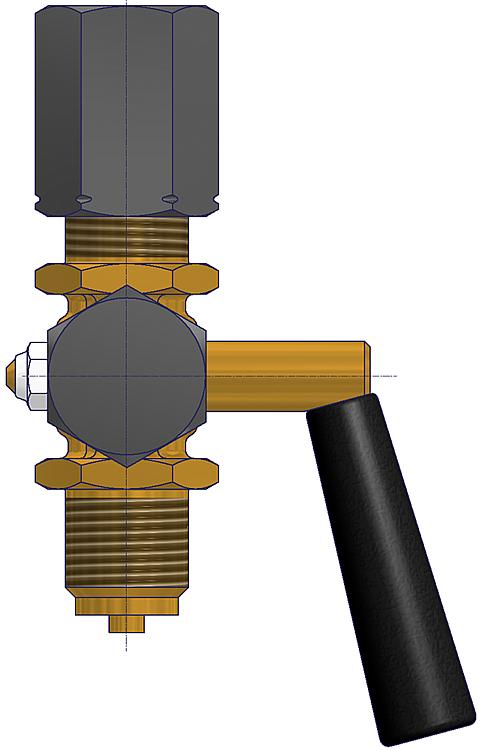

M 20 x 1.5 Ø 40 x 5 60 x 25 x 10

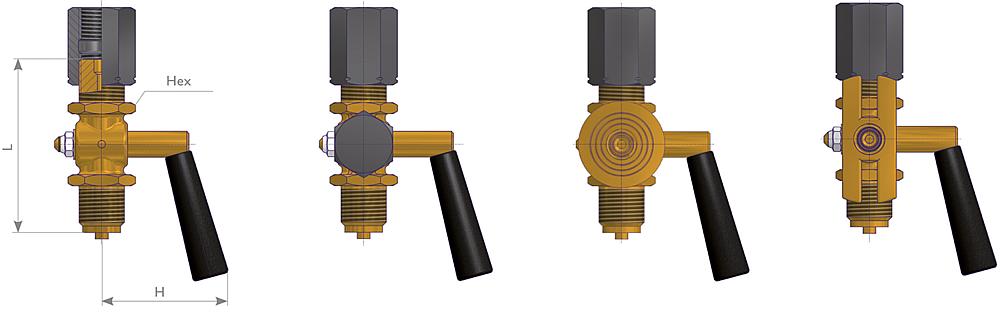

| Inlet | Outlet | Material | PN | L | H | Hex | Test Connection | References | Part Number |
| G 1/4 Male | G 1/4 Adjusting Nut | Brass | 6 | 55 | 30 | 17 | DIN 16262 Type B | S003.42.000 | |
| G 1/2 Male | G 1/2 Adjusting Nut | 25 | 80 | 57 | 27 | DIN 16262 Type A | N003.30.000 | ||
| Brass AP* | S003.30.000.32 | ||||||||
| 1.4571 | 83 | DIN 16262 Type A | S003.30.200 | ||||||
| Brass | 80 | M 20 x 1,5 c/w Protective Cap | DIN 16263 Type A | N003.31.000 | |||||
| Brass AP* | S003.31.000.32 | ||||||||
| 1.4571 | 83 | DIN 16263 Type A | S003.31.200 | ||||||
| Brass | 80 | Test Flange 60 x 25 x 10 |
N003.36.000 | ||||||
| Stainless Steel | 83 | S003.36.200 | |||||||
| Brass | 80 | Test Flange Ø 40 x 5 |
N003.38.000 | ||||||
| M 20 x 1,5 Male | M 20 x 1,5 Adjusting Nut | N003.30.050 | |||||||
| 83 | M 20 x 1,5 c/w Protective Cap | N003.31.050 | |||||||
| 1.4571 | S003.31.250 |
* Brass (AP) = Body, Adjusting Nut and Protective Cap in Brass.
