5 Valve Manifolds
D5 Type

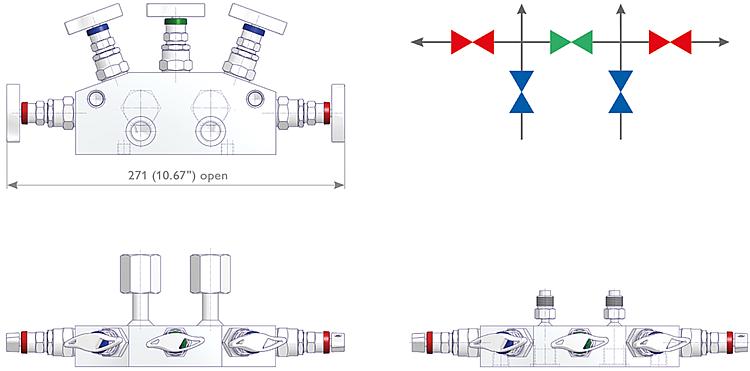

AS-Schneider 5 Valve Manifolds for Differential Pressure Gauges are available with a center to center distance of 37 mm or 54 mm as standard. The instrument connections are supplied with a Swivel Nut or a Swivel Male Connection. The standard vent connection is 1/4 NPT female. Pipe plugs are not installed as standard.
A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:
General InformationExample for a typical product acc. to the below mentioned Ordering Information:
Part No.: D5BESA-N4G4
| D | Differential Pressure Gauge Manifold |
| 5 | Quantity Bonnets: 5 |
| B |
Manifold Specifics - Thread Size Inlet x Distance from Center to Center for Differential Pressure Gauge: G 3/8 x 54 mm |
| E | Inlet x Outlet Configuration: Male Connector x Swivel Nut |
| S | Material: 1.4401 / 1.4404 / 316 / 316L |
| A | Bonnet: PTFE |
| - | |
| N4 | Inlet - Thread Type: 1/2 NPT |
| G4 | Outlet - Thread Type: G 1/2 Swivel Nut or Swivel Male |
AS-Schneider 5 Valve Manifolds for Differential Pressure Gauges are available with a center to center distance of 37 mm or 54 mm as standard. The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider 5 Valve Manifolds, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156), degreased and lubricated for oxygen service as well as manifolds for fugitive emission applications.
