Description
Mounting Bracket
SAM Type
AS-Schneider SAM Mounting Brackets are designed to ensure a Simple and Quick Installation of Manifolds with other Accessories including the Nameplate. There are four different types of Mounting Brackets available. The Brackets are made of 316 SST and are designed to be assembled to a 2" Pipestand. A Type is used, if a Protective Shade is required.
Mounting Bracket - A1, A2, B1 and B2 Type
SAM-A1 Type SAM-A2 Type

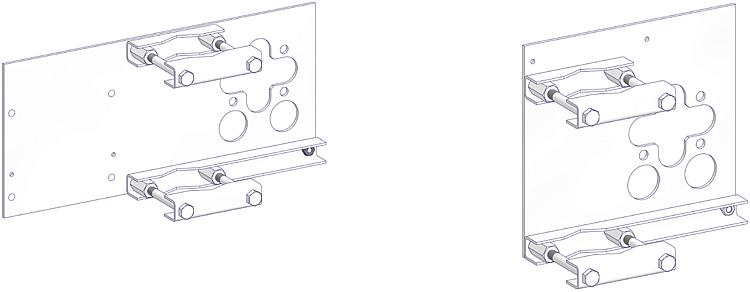

SAM-B1 Type SAM-B2 Type
Ordering Code
| MESC Code | Standard Drawing | Description | Part Number |
| MESC 60.98.91.105.1 | 37.813 | Mounting Bracket A1 | SAM-A1 |
| MESC 60.98.91.110.1 | 37.815 | Mounting Bracket A2 | SAM-A2 |
| MESC 60.98.91.118.1 | 37.814 | Mounting Bracket B1 | SAM-B1 |
| MESC 60.98.91.120.1 | 37.816 | Mounting Bracket B2 | SAM-B2 |
| 37.601 | Stainless Steel Tag Plate | SAC-S00 |
