5 Valve Manifolds

W5AA Type

Standard Manifolds

AS-Schneider Direct Mount 5 Valve Manifolds (Wafer Style) are designed for direct mounting to Differential Pressure Transmitters with standard flange connection in accordance with DIN EN 61518 / IEC 61518. The standard vent connection is 1/4 NPT female. Pipe plugs are not installed as standard. The IEC 61518-B manifold design is more compact compared to the IEC 61518-A design.

A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.

Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:

General InformationExample for a typical product acc. to the below mentioned Ordering Information:

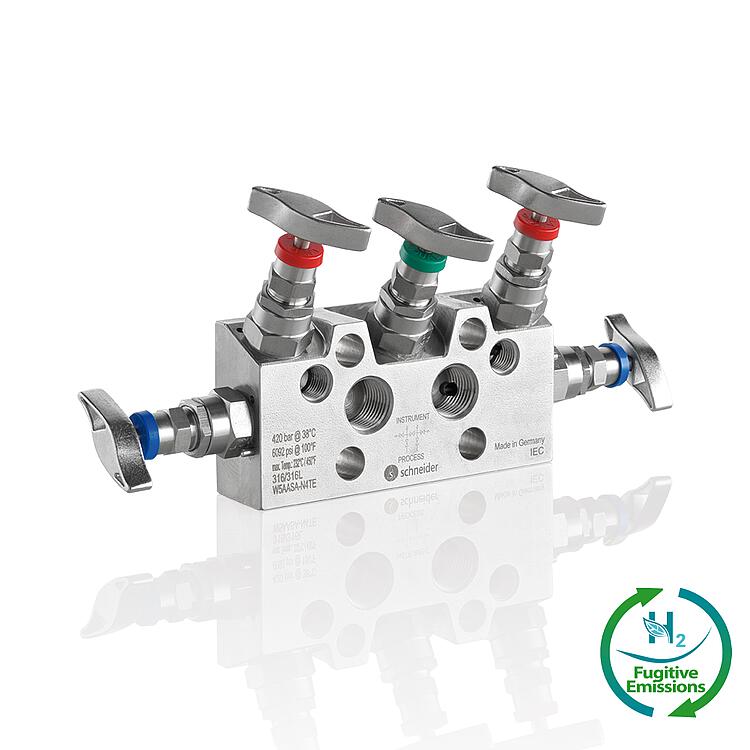

Part No.: W5AASA-N4TE

W Wafer Style Manifold
5 Quantity Bonnets: 5
A Manifold Specifics: Standard –
5 Valve Manifold with Vent Ports 1/4 NPT Female
A Inlet: Female
S Material: 1.4401 / 1.4404 / 316 / 316L
A

Bonnet: PTFE

-
N4 Inlet - Thread Size: 1/2 NPT
TE Outlet - Transmitter Interface: DIN EN 61518-B

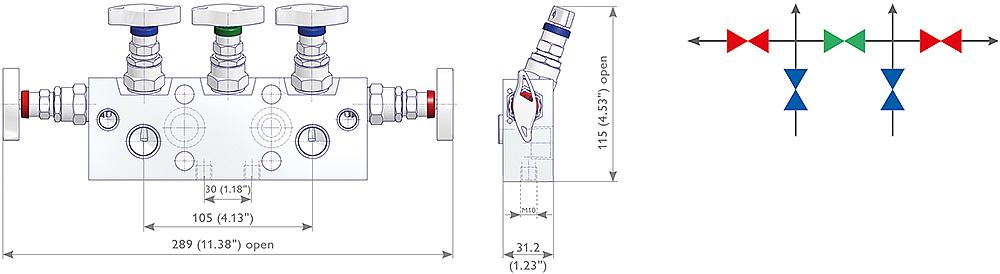

5 Valve Manifolds - Flange Connection IEC 61518-A
W5AA Type
5 Valve Manifolds Drawing (arrangement) 1
The dimensions shown in this catalogue apply to standard types. If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.

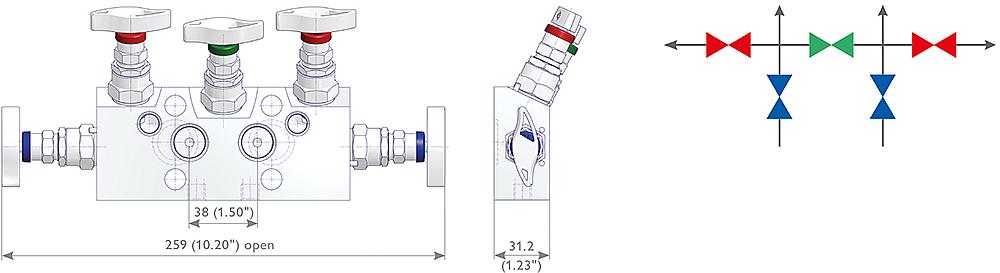

5 Valve Manifolds - Flange Connection IEC 61518-B
W5AA Type
5 Valve Manifolds Drawing (arrangement) 2
The dimensions shown in this catalogue apply to standard types. If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.
Ordering Information
BI
5 Valve Manifolds Drawing (dimension) 3
MS
Further Information

AS-Schneider Direct Mount 5 Valve Manifolds (Wafer Style) are designed for direct mounting to Differential Pressure Transmitters with standard flange connection in accordance with DIN EN 61518 / IEC 61518. The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider 5 Valve Manifolds, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156), degreased and lubricated for oxygen service as well as manifolds for fugitive emission applications.
