3 Valve Manifolds
E3A Type

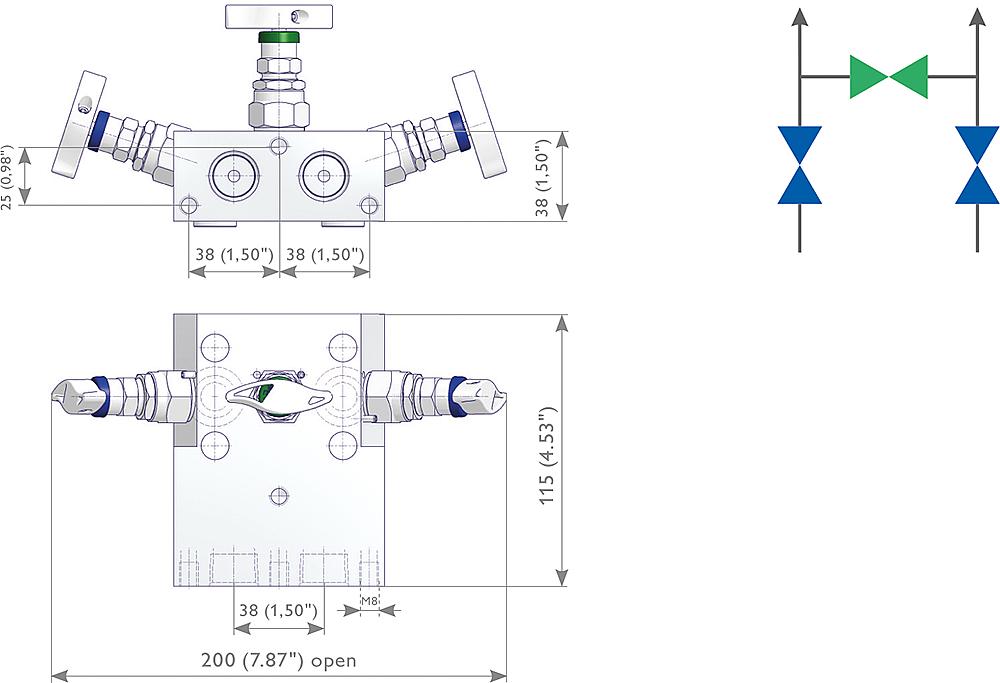

AS-Schneider EDM Series 3 Valve Enclosure Manifolds are manufactured for applications that require the transmitter to be mounted in an enclosure for environmental protection. The standard instrument connection is: Flange connection for direct mounting to Pressure Transmitters in accordance with DIN EN 61518 / IEC 61518. Vent ports are not provided as standard.
If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.
A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:
General InformationExample for a typical product acc. to the below mentioned Ordering Information:Part No.: E3AASA-N4TD
E |
Enclosure Manifold |
3 |
Quantity Bonnets: 3 |
A |
Vent Port: none |
A |
Inlet x Outlet: Female x Flanged |
S |
Material: 1.4401 / 1.4404 / 316 / 316L |
A |
Bonnet: PTFE |
- |
|
N4 |
Inlet Thread Size: 1/2 NPT |
TD |
Outlet Thread Size: DIN EN 61518-A |
AS-Schneider Enclosure Systems have been developed to provide a weatherproof barrier for every type of installation. Modern process measurement instrumentation needs protection not only from the effects of sun, rain, frost, aggressive atmosphere or dirt but also from accidental damage or unauthorized access.
The Enclosure Manifolds allow direct mounting to a baseplate or a back plate of the enclosures. A lot of accessories such as electrical heating systems, thermostats, junction boxes, grommets and pipestands are available. Designed and fitted out to customer‘s specifications AS-Schneider is supplying the complete solution - enclosure, manifolds and all accessories needed – for an easy on-site installation. For more details please contact the factory. Manifold Mounting Options Further InformationAS-Schneider EDM Series 3 Valve Enclosure Manifolds are manufactured for applications that require the transmitter to be mounted in an enclosure for environmental protection. The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider 3 Valve Manifolds, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156), degreased and lubricated for oxygen service as well as manifolds for fugitive emission applications.
