Gauge Valves

Special Type G 1/4

The size of the AS-Schneider Gauge Valves G 1/4 is smaller compared to the standard gauge valves, especially the brass type. Carbon steel and stainless steel components are identical to the standard gauge valves. The components of the brass type are smaller and the valve stem is a one-piece design. The valves are applicable for a max. allowable (Working) Pressure (PS) of 125 bar (1,813 psi) (brass) respectively 250 bar (3,626 psi) (carbon steel and stainless steel) and a max. allowable Temperature (TS) of 200°C (392°F) (brass type) / 232°C (450°F) (carbon steel and stainless steel) for liquids, gas or vapors.

Please consider the requirement that valves and above all measuring instruments need to be protected against heating by hot media. This can be achieved by syphons or by instrument impulse lines with sufficient length.

Available connections and materials, please see below Ordering Information or more detailed under:General Information
Gauge Valves - Special Type G 1/4

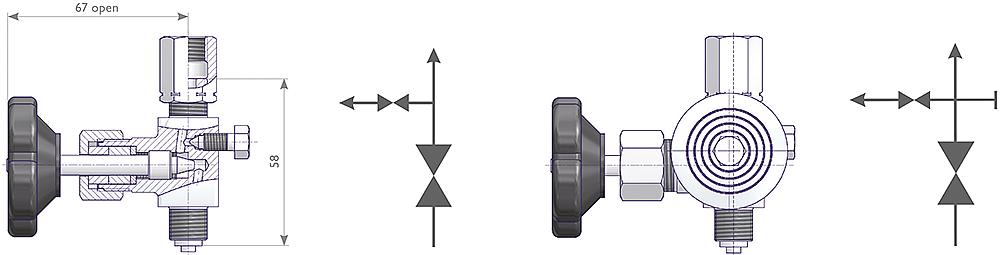

Brass Type without Test Connection                                        Brass Type with Test Flange Ø 40 x 5

Gauge Valves Drawing (arrangement) 1

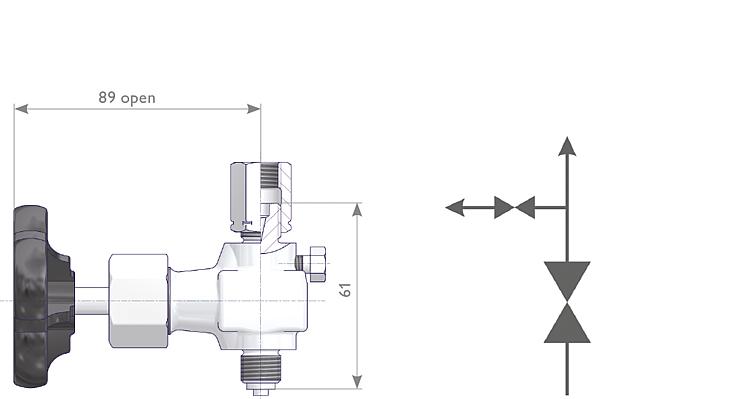

Carbon Steel and Stainless Steel Type without Test Connection
Gauge Valves Drawing (arrangement) 2
Ordering Information
Gauge Valves - Special Type G 1/4BI
Inlet Outlet Test Connection Material Part Number
G 1/4 Male G 1/4 Adjusting Nut   Brass S004.12.000
Test Flange Ø 40 x 5 S004.12.065
1.0460 S004.13.130
1.4571 S004.13.230
Further InformationAS-Schneider Gauge Valves are designed for mounting to Pressure Gauges, Pressure Transmitters and Pressure Switches. The AS-Schneider Gauge Valves, as standard, are rated to 400 bar (5,801 psi).
