4 Valve Manifolds

A Type

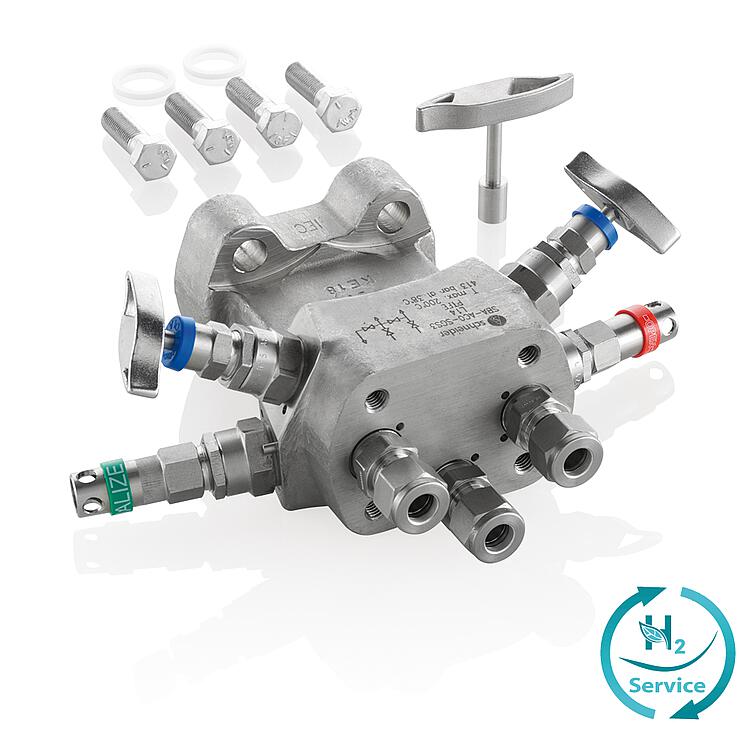

AS-Schneider Direct Mount 4 Valve Manifolds are designed for direct mounting to Differential Pressure Transmitters with standard flange connection in accordance with DIN EN 61518 / IEC 61518 and are compatible with the Shell® MESC Specifications for Process Instrumentation. The SB Manifold can be assembled directly to a Standard Mounting Bracket SAM Type, eliminating the need for extra Mounting Accessories and reducing pipe work on site. Inlet connections are G 1/4, 1/4 NPT or 1/2 NPT female threaded, the vent connection G 1/4 or 1/4 NPT female. The connections can be fitted with or without twin ferrule compression fittings.

The Instrument connection is acc. to DIN 19213 part 2, revision 1980 or DIN EN 61518 Type A, alternatively available as Integral Manifold for Rosemount 2051/3051 CoplanarTM Pressure Transmitters. Manifold to Transmitter Mounting Kits are supplied with the manifold as standard.

A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.

Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:

General InformationSB Manifolds FlyerExample for a typical product acc. to the below mentioned Ordering Information:

Part No.: SBA-AA0-SGS3T

SB SB Manifold
A Packing: PTFE
-
A Type: Double Isolate / Equalize / Vent
A Transmitter Connection: DIN 19213 part 2, rev. 1980
0
-
S Material: 1.4401 / 1.4404 / 316 / 316L
G Process / Vent Connection: G 1/4 Female
S Compression Fitting: Swagelok
3 Size Compression Fitting: 10 mm
T Option: Anti-Tamper Key
4 Valve Manifolds
A Type

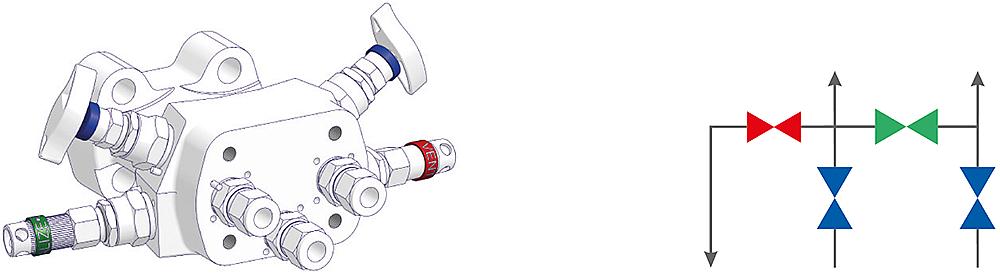

4 Valve Manifolds Drawing (arrangement)
Ordering Code - Field of Application
Type MESC Code Description Seal Ring/Packing Vent Part Number
A MESC 60.98.56.205.1 4 Valve Manifold
For general applications.
PTFE 10 mm* SBA-AA0-SG*3
MESC 60.98.56.405.1 Graphite SBA-AC0-SG*3
MESC 60.98.56.207.1 PTFE 3/8"* SBA-AA0-SG*8
MESC 60.98.56.407.1 Graphite SBA-AC0-SG*8



* Compression Fitting - Make, type, size and composition as specified in the requisition/indent.

Ordering Information
BI
4 Valve Manifolds Drawing (arrangement)
MS
Mounting Bracket Kits and Accessories
Further Information

AS-Schneider Direct Mount 4 Valve Manifolds are designed for direct mounting to Differential Pressure Transmitters with standard flange connection in accordance with DIN EN 61518 / IEC 61518 and are compatible with the Shell® MESC Specifications for Process Instrumentation. The SB Manifold can be assembled directly to a Standard Mounting Bracket SAM Type, eliminating the need for extra Mounting Accessories and reducing pipe work on site. Inlet connections are G 1/4, 1/4 NPT or 1/2 NPT female threaded, the vent connection G 1/4 or 1/4 NPT female. The connections can be fitted with or without twin ferrule compression fittings. The Instrument connection is acc. to DIN 19213 part 2, revision 1980 or DIN EN 61518 Type A, alternatively available as Integral Manifold for Rosemount 2051/3051 CoplanarTM Pressure Transmitters. The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider 4 Valve Manifolds, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156), degreased and lubricated for oxygen service as well as manifolds for fugitive emission applications.
