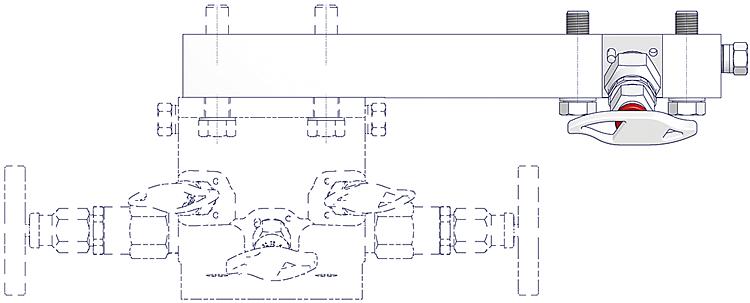

AS-Schneider Adapters, either ΔP to Static or ΔP to ΔP Adapters, are flanged to the 5 Valve Manifolds when more than one measurement on a single set of orifice taps is required. The ΔP to Static Adapter is designed to mount both a Static Transmitter and a Differential Pressure Transmitter. The ΔP to ΔP Adapter is designed to mount 2 Differential Pressure Transmitters, - typically for custody transfer or bi-directional flow applications. The vent connection is 1/4 NPT female, the ports are plugged by default.
The ΔP to Static adapter incorporates an isolation valve for the vent connection 1/4 NPT. If transmitters with 1/2 NPT male or female connection need to be assembled to the adapter a NPT Static Adapter (AKA-F# / AKA-M#) is available - to be ordered separately.
Bore Size: 3/8" (9.5 mm), to reduce or eliminate freezing issues.
Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:
General InformationExample for a typical product acc. to the below mentioned Ordering Information:Part N.: AKA-SSKD-1
AKA | Adapters |
- | |
S | Adapter Design: ΔP - Static Adapter |
S | Material: 1.4401 / 1.4404 / 316 / 316L |
K | Abdichtung des Betätigungsorgans: O-Ring FKM |
D | Seat Material: POM |
- | |
1 | Accessory Kit: In CS, Seal Ring in PTFE |
NPT Static Adapter
NPT Static Adapter | Part Number | |
Carbon Steel | Stainless Steel | |
1/2 NPT Female | AKA-FC | AKA-FS |
1/2 NPT Male | AKA-MC | AKA-MS |
