Description
Equalizer Manifolds

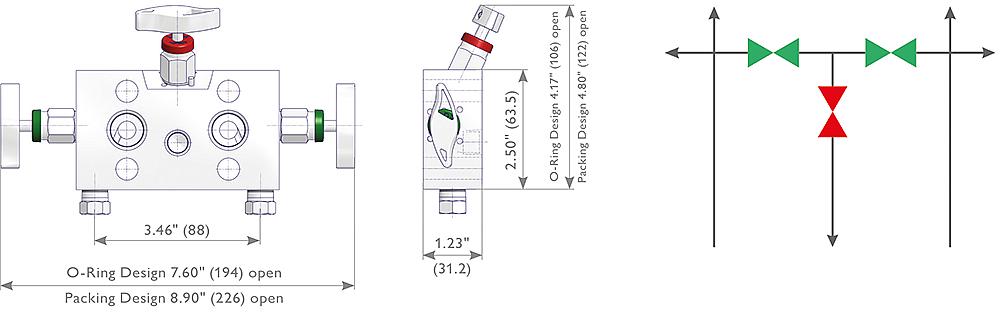

EM3 Type
AS-Schneider Soft Seated Direct Mount Equalizer Manifolds are designed for direct mounting to Differential Pressure Transmitters. The inlet connections (process connection), as standard, are 1/4 or 1/2 NPT female threaded and the vent connection is 1/4 NPT female. The test/calibration ports 1/4 NPT female are plugged.
Bore Size:
- Process to Instrument Connection – Bore Size 3/8" (9.5 mm) - Roddable
- Equalize and Vent Valves – Bore Size 0.138" (3.5 mm)
Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:
General InformationExample for a typical product acc. to the below mentioned Ordering Information:Part No.: EM3-SKDN2
| EM | Equalizer Manifold |
| 3 | Quantity Bonnets: 3 |
| - | |
| S | Material: 1.4401 / 1.4404 / 316 / 316L |
| K | Stem Seal / Packing: O-Ring FKM |
| D | Seat Material: POM |
| N2 | Thread Size: 1/4 NPT |
Equalizer Manifolds
Mounting Bracket Kits and Accessories
Further InformationAS-Schneider Soft Seated Direct Mount Equalizer Manifolds are designed for direct mounting to Differential Pressure Transmitters. The inlet connections (process connection), as standard, are 1/4 or 1/2 NPT female threaded and the vent connection is 1/4 NPT female. The test/calibration ports 1/4 NPT female are plugged. The AS-Schneider Manifolds, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156) and degreased and lubricated for oxygen service.
