Description
Soft Seated Hand Valves
H Type
AS-Schneider Soft Seated Hand Valves are available with a lot of options. HA Type Hand Valves are bi-directional. HX Type Hand Valves also, but the inlet is defined by the extension.
Bore Size: 1/4" (6.35 mm)
The valves are fully roddable due to the Cone Design Valve Seat.
Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:

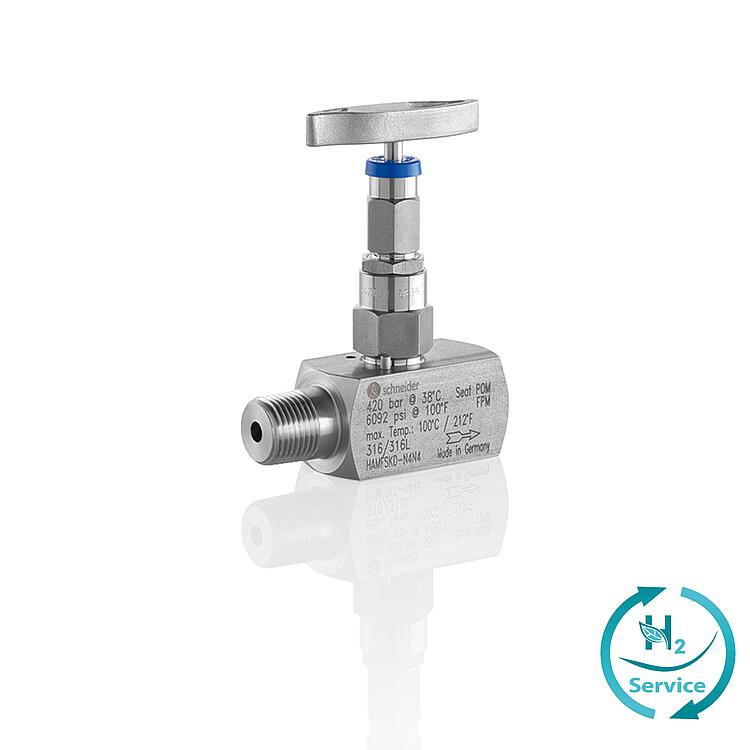

General InformationExample for a typical product acc. to the below mentioned Ordering Information:Part No.: HAMFSAD-N4N4
| H | Hand Valve |
| A | Basic Design: Standard - 1/4" Bore Size (6.35 mm) |
| M | Inlet: Male Thread |
| F | Outlet: Female Thread |
| S | Material: 1.4401 / 1.4404 / 316 / 316L |
| A | Stem Seal / Packing: PTFE |
| D | Seat Material: POM |
| - | |
| N4 | Inlet Thread Size: 1/2 NPT |
| N4 | Outlet Thread Size: 1/2 NPT |
Soft Seated Hand Valves
HAFF Type HAMF Type
Female x Female Threaded Male x Female Threaded
Soft Seated Hand Valves - Extended Body
HXMF Type
Extended Body Type
Mounting Bracket Kits and Accessories
Further InformationAS-Schneider Soft Seated Hand Valves are available with a lot of options. The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider Hand Valves, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the valves for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156) and degreased and lubricated for oxygen service.
