Mini Valves

AS-Schneider Mini Valves have a rugged design despite its small size. The inlet and outlet connections, as standard, are 1/4 NPT threaded. The valves are available with Double O-Ring Stem Seal or PTFE packed. The Soft Seats are field replaceable.

Bore Size: Bore Size 0.138" (3.5 mm)

A diverse range of options and the relevant accessories are available; please see below Mounting Bracket Kits and Accessories.

Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:

General InformationExample for a typical product acc. to the below mentioned Ordering Information:

Part No.: A5S-CN2SKD

A5	Mini Valves
S	Basic Design: Straight Pattern
-
C	Inlet x Outlet: Male x Male
N2	Inlet and Outlet Thread Size: 1/4 NPT
S	Material: 1.4401 / 1.4404 / 316 / 316L
K	Stem Seal / Packing: O-Ring FKM
D	Seat Material: POM

Mini Valves

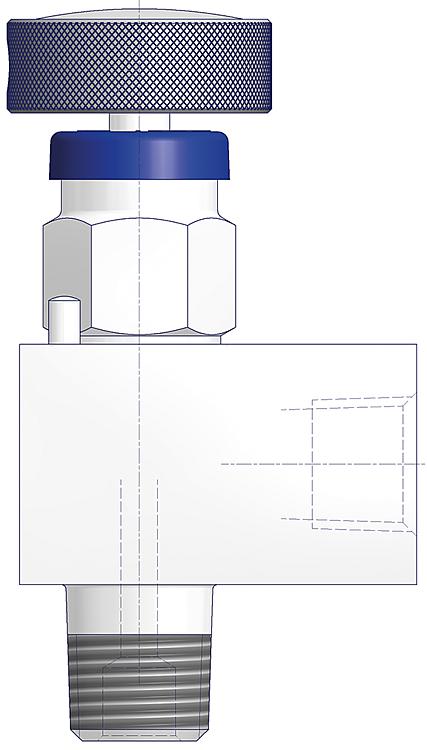

Straight Pattern Angle Pattern

The dimensions shown in this catalogue apply to standard types. If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.

Ordering Information

Mounting Bracket Kits and Accessories

Spare PartsValve Seats

Further InformationAS-Schneider Mini Valves have a rugged design despite its small size. The inlet and outlet connections, as standard, are 1/4 NPT threaded. The valves are available with Double O-Ring Stem Seal or PTFE packed. The Soft Seats are field replaceable. The AS-Schneider Mini Valves, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the valves for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156) and degreased and lubricated for oxygen service.
