Description
3 Valve Manifolds
R3A/R3S Type
AS-Schneider Soft Seated Remote Mounted Manifolds R3A/R3S Type are designed for remote installation from Differential Pressure Transmitters. The inlet and outlet connections, as standard, are 1/2 NPT female threaded. The standard 3 Valve Manifolds R3A/R3S Type have no vent connections.
Bore Size:
- Isolate Valves - 1/4" (6.35 mm) or 3/8" (9.5 mm)
- Equalize Valves - 0.138" (3.5 mm)
The process to instrument connection is fully roddable due to the Cone Design Valve Seat of the Isolate Valves.
Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:

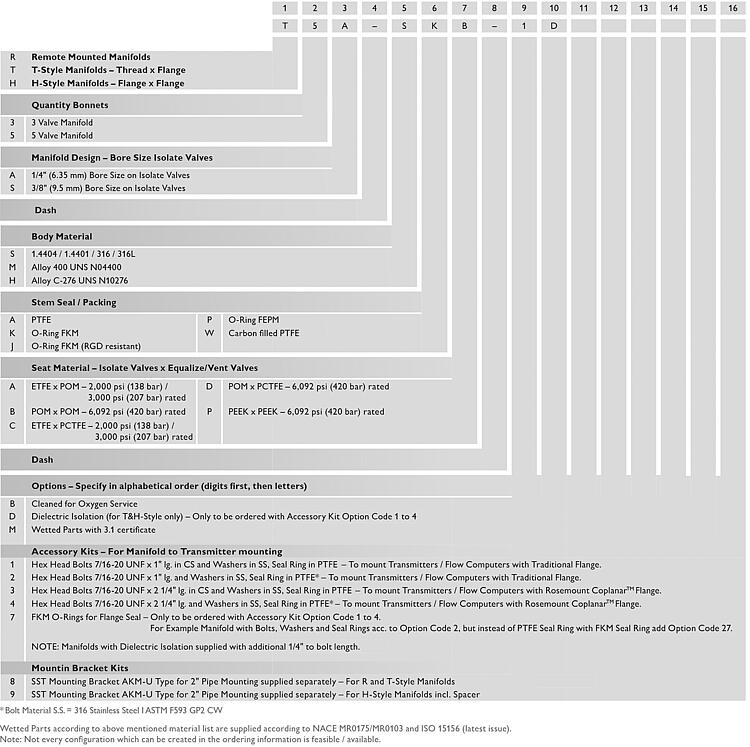

General InformationExample for a typical product acc. to the below mentioned Ordering Information:Part No.: R3A-SAA
| R | Remote Mounted Manifold |
| 3 | Quantity Bonnets: 3 |
| A | Manifold Design - Bore Size Isolate Valves: 1/4" (6.35 mm) |
| - | |
| S | Material: 1.4401 / 1.4404 / 316 / 316L |
| A | Stem Seal / Packing: PTFE |
| A | Seat Material: ETFE x POM |
Remote Mounted 3 Valve Manifolds
R3A Type
1/4" (6.35 mm) Soft Seat
R3S Type
3/8" (9.5 mm) Soft Seat
Mounting Bracket Kits and Accessories
Further InformationAS-Schneider Soft Seated Remote Mounted Manifolds R3A/R3S Type are designed for remote installation from Differential Pressure Transmitters. The standard 3 Valve Manifolds R3A/R3S Type have no vent connections. The innovative design of the valve head units gives long service life and a smooth, low-torque Operation. The AS-Schneider Manifolds, as standard, are rated to 420 bar (6,092 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156) and degreased and lubricated for oxygen service.
