5 Valve Manifolds

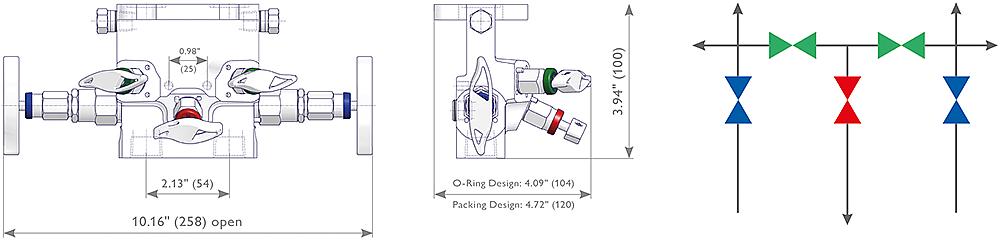

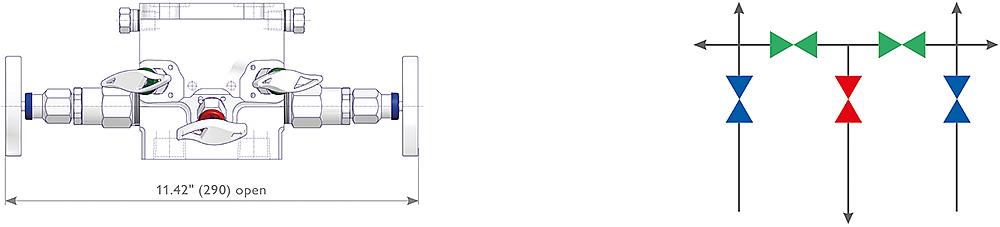

T5A/T5S Type

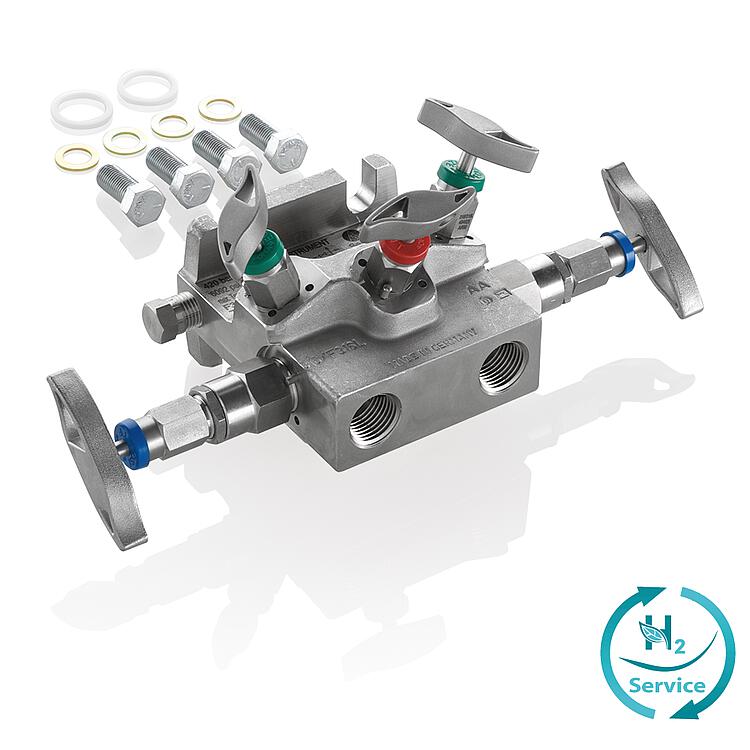

AS-Schneider Soft Seated Direct Mount Manifolds T5A/T5S Type are designed for direct mounting to Differential Pressure Transmitters. The inlet connections (process connection), as standard, are 1/2 NPT female threaded. The standard vent connection is 1/4 NPT female and is supplied with a fitted Bug Plug as standard. The test ports 1/4 NPT female are plugged by default. Accessory kits incl. washers are required for manifold to transmitter mounting, because the manifolds are provided with slotted bolt holes.
Bore Size:
- Isolate Valves - 1/4" (6.35 mm) or 3/8" (9.5 mm)
- Equalize and Vent Valves - 0.138" (3.5 mm)
The process to instrument connection is fully roddable due to the Cone Design Valve Seat of the Isolate Valves.
Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:
General InformationExample for a typical product acc. to the below mentioned Ordering Information:Part No.: T5S-SKB-4D
| T | T-Style Manifold - Thread x Flange |
| 5 | Quantity Bonnets: 5 |
| S | Manifold Design - Bore Size Isolate Valves: 3/8" (9.5 mm) |
| - | |
| S | Material: 1.4401 / 1.4404 / 316 / 316L |
| K | Stem Seal / Packing: O-Ring FKM |
| B | Seat Material: POM x POM |
| - | |
| 4 | Accessory Kit: In SS - to mount Transmitters with Rosemount CoplanarTM Flange |
| D | Option: Dielectric Isolation |
